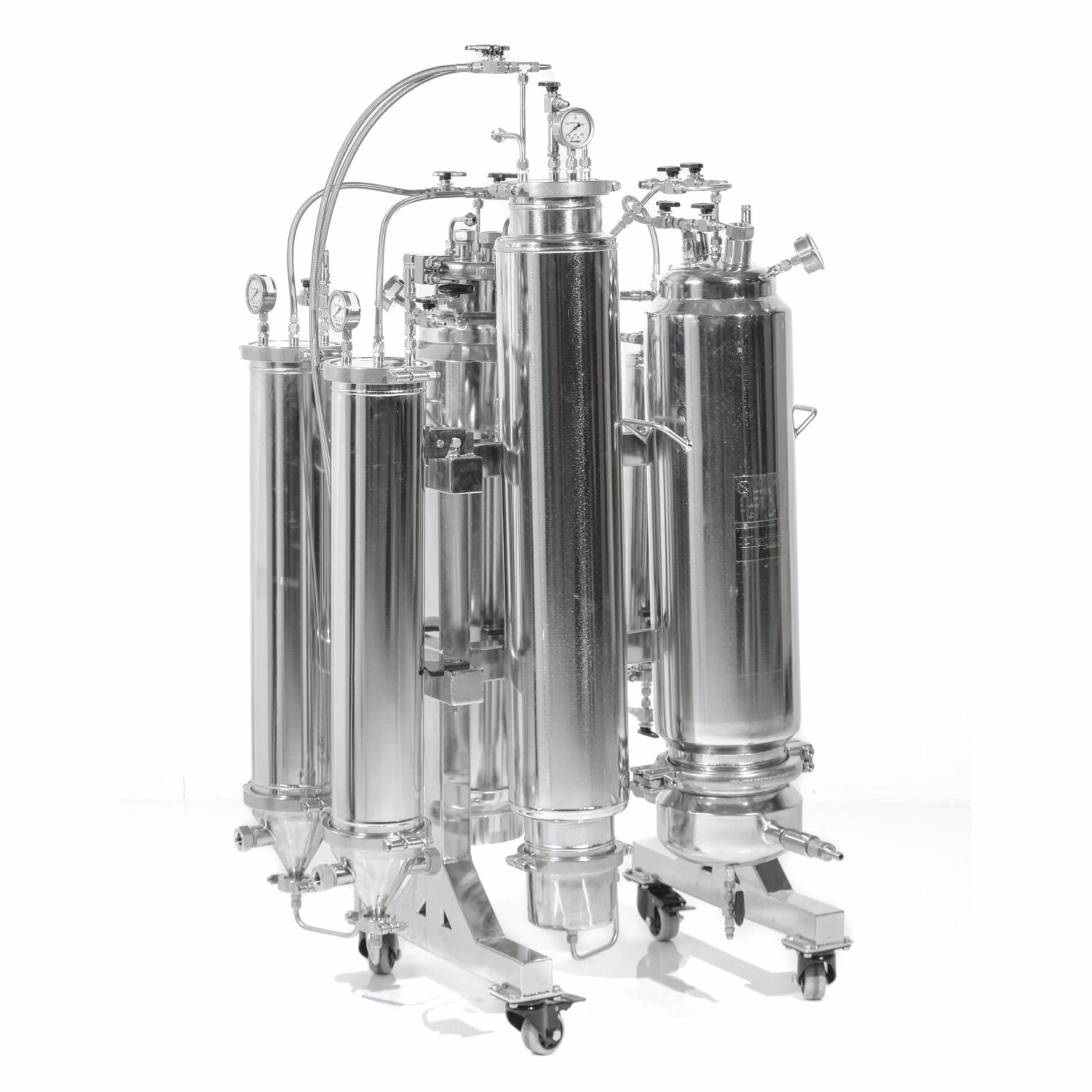

X10 MSE Cannabis Extraction Equipment

Contact Us for Pricing

Our flagship closed-loop extractor for cannabis and hemp

Boasting great versatility and a compact size, the X10 MSE (multi-solvent extractor) is an ideal piece of cannabis extraction equipment for mid-level commercial production and craft applications for cannabis and hemp extracts.

Versatile Cannabis Extraction Equipment

The X10 MSE is a cannabis extraction machine packed with several convenient features, chief among them being pre-plumbed for chillers and heaters, and also includes our custom stainless steel material baskets to make loading and unloading a breeze.

The extraction system also includes an optional vacuum-insulated dewaxing column with a submersible coil and variable filtration at the bottom.

  • Small footprint and ergonomically friendly design
  • Precise control over primary extraction with our Precision® Low Temp Ball Valves
  • Approximately 28L, 10 lb average material capacity per batch
  • Removable material baskets for easy load/unload
  • Proprietary basket micro-filtration for lipids
  • 1/2” PTFE/SS feed hosing (UL-21 compliant)
  • Viton/PTFE gaskets
  • Inline dewaxing capable of -70°C
  • Vacuum jacket insulated solvent/dewax vessels
  • Expansion column designed for desiccant assisted moisture removal

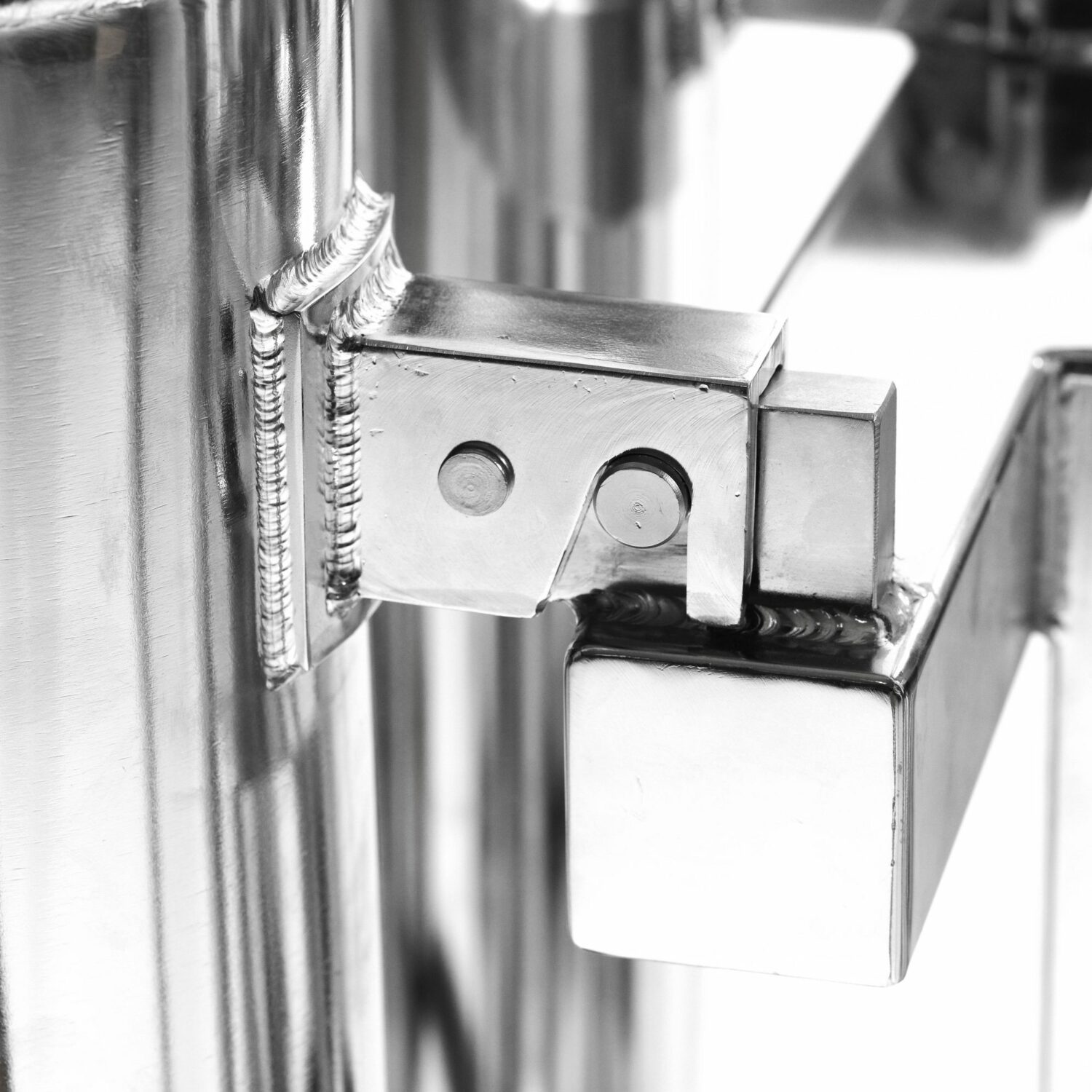

  • Clampless mounting for easy loading/unloading
  • N2 assisted extraction up to 200 PSI
  • Ultra-efficient internal temperature coil mechanisms
  • Pre-plumbed for chillers and heaters
  • Patent-pending vessel temperature control systems
  • SL-12 recirculating heat bath (see cut sheet)

  • PSI certified in all 50 states
  • ASME-U
  • NFPA 58 LPG
  • Class 1, Division 1 Compliant
  • Trans-fill approved per NFPA
  • Compliant in all regulated jurisdictions*
  • Engineer peer reviewed for all Type 6 & Type 7 licenses
  • CRN registered in Ontario, British Columbia, and Quebec
    • The end user shall consult with their local regulatory authority prior to start-up to ensure local piping requirements of the installation are met.
    • Please inquire with our sales team as to the status of other pending Canadian province approvals.

Pre-Approved for Easy Certification


PSI Certified

Our X10 MSE Cannabis Extraction Equipment is pre-approved and ready for professional engineers to field verify in all 50 states, so you can get operational faster. In partnership with PSI (Pressure Safety Inspectors), our extractors come with a PSI technical report certification and a field verification voucher to meet your state and local regulations.

Once your system is installed by an Agrify Technician, simply call PSI and schedule your field verification. Simple as that!

  • Warranty** One-Year

  • Dimensions (approx.) 44″ L x 46″ W x 69″ H
  • Weight 375 lb
  • Shipping Weight 635 lb
  • MAWP 250 PSIG
  • Chiller Pairing Recommendations Huber Unistat 815, Julabo equivalent, or better

Precision offers the following on-site training programs with our experienced extraction technicians for our X10 MSE Cannabis Extractor.

Expand your team’s extraction skills by adding the following course:

Our customer service reps and technicians live for this industry – and answer the phone. We’re here to support your staff with any questions or technical support they may have.

X10 MSE Cannabis Extraction Equipment

Suitable for:
Cannabis & Hemp

Solvents:
Butane, Propane & Isobutane

Per Hour Processing:
Butane or Propane – Up to 10 lb

Cycle Time:
40-60 minutes*

Capacity:
Up to 100 lb, per 8-hr shift

Extracts:
Isolate/Sauce, Distillate, Vape Pens, Shatter, Wax/Sugar, Tincture and Edibles

Size:
44” L x 46”W x 69” H

Warranty:
1-Year
