Refined, new, and improved.
The ability to condense vapors in a strategic portion of the system will allow one to protect their pump from harsh compounds.

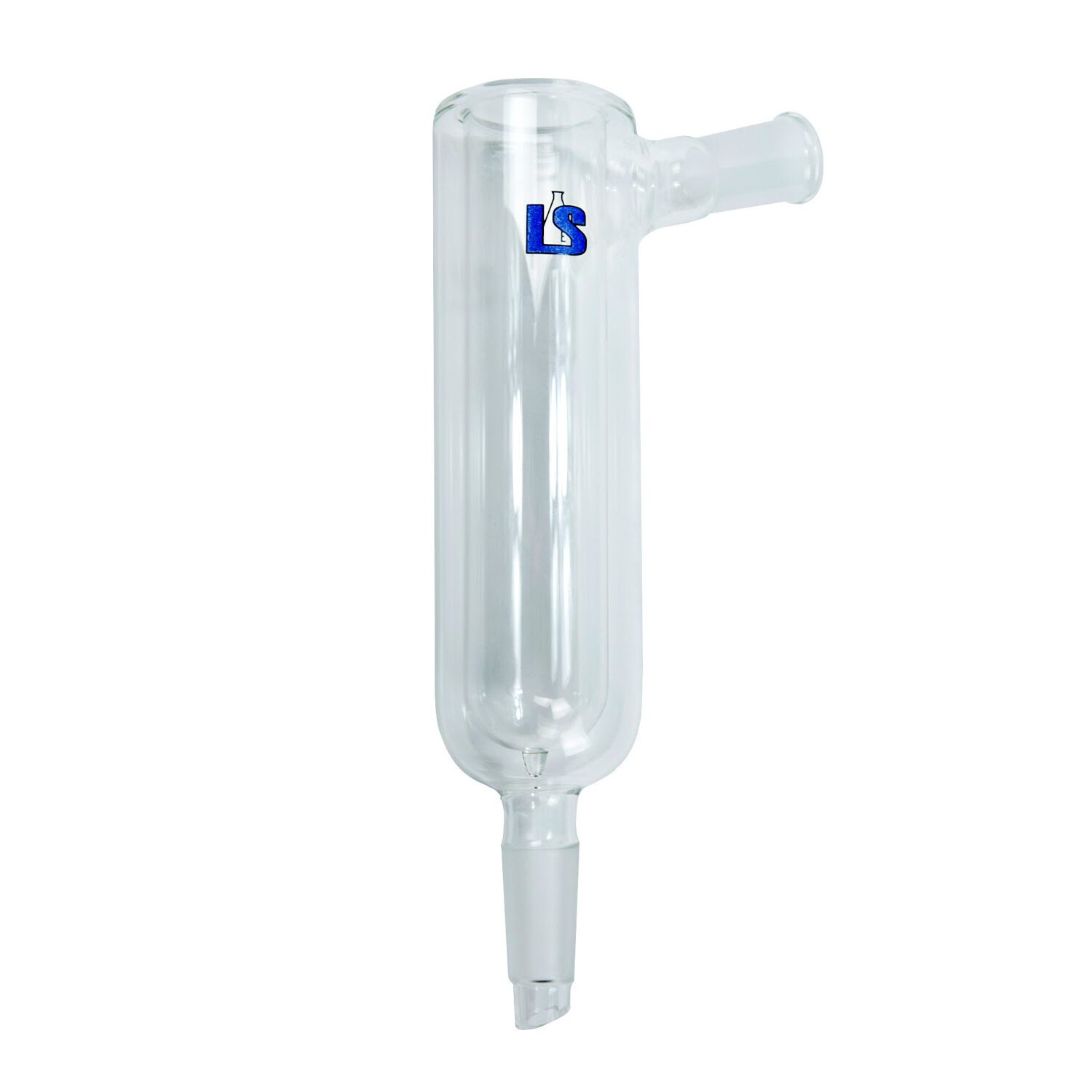

Our all-new, Dewar-style Condenser lets you capture vapors right inside your condensing chamber. Our signature Vertical Dewar Condenser has an opening on top
allows you to fill the condenser with a coolant, such as dry ice or solvents using an immersion chiller.
Newly re-envisioned, the LS Vertical Dewar Condenser can attach to various parts of your laboratory system, and it allows for a vacuum pull via the top inner 24/40 joint*.
The cold finger on the inner bottom portion of the condenser allows condensate to collect together and drip through the 24/40 bottom outer joint into a collection flask.
Help your pumps last longer.
Cold traps are commonly employed in labs to reduce pump maintenance. Reducing pump maintenance via a cold trap allows the user to perform fewer oil changes, increases the life expectancy of the pump, and it will aid in keeping the vacuum at its optimal level for longer.
These are all important factors when dealing with vacuum pumps, and we always recommend that you make use of a cold/vacuum trap to reduce contaminants from entering your pump.
A true custom original.
This is yet another American-made, original Lab Society by Agrify custom piece of glass, and we believe it’s part of the next era of distillation.
- 24/40 joints
- Collect condensate and let it drip into a flask
- Protect your pump from harsh compounds
- Maximize the efficiency of your system
Model: | LS-DSC-24 |
Upper Joint Size: | 24/40 Outer angled |
Lower Joint Size: | 24/40 Inner w/ drip tip |
Overall Length (Including Lower Joint): | 283mm |
Overall Width (Including Upper Joint): | 134mm |
Overall Width (Excluding Upper Joint): | 64mm |
Condenser Length: | 200mm |
Condenser Width: | 45mm |
Note:
*Depending on your set-up, certain adapters may be required for this.
An Immersion Chiller or dry ice may be required to condense efficiently.
