Solvent Resistant Door Gasket, CVO-5, 18 x 18

$251.68

Item No: 3450724

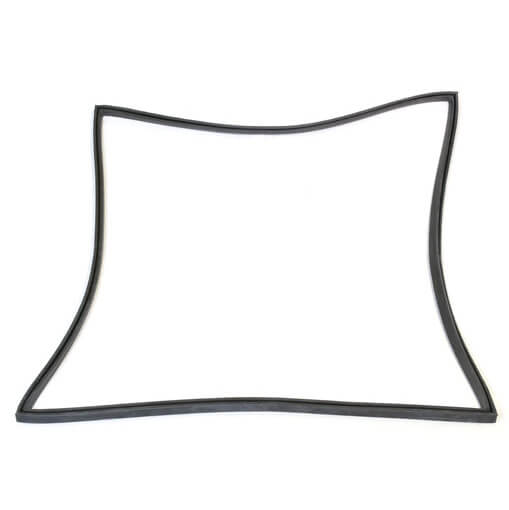

Solvent Resistant Door Gasket, CVO-5, TVO-5, 18 x 18

These 18″ x 18″ BLACK colored door gaskets fit all Cascade CVO-5 vacuum ovens and are made of BUNA, a material designed to withstand solvents. They have a max temp of 105°C / 221°F.

Gaskets wear out. Remember to clean, rotate and have spares on hand!

VITON is a type of FKM, a synthetic rubber and fluoropolymer elastomer (ASTM D1418 and ISO 1629). VITON the standard gasket material of choice for clean, low outgassing applications in aerospace, food and medial industries.  They perform well up against outgassing oils, fuels, and mineral acids.  VITON has excellent resistance to UV, fungus, molds and overall oxidation.

Cascade loves Viton gaskets because of the low outgassing rate.  Typical initial degassing rates for Viton are reported to be close to 1 x 10-6 Torr-liter/cm2-s, with a 0.07% weight loss after over 336 hours of vacuum exposure.  With an outgass rate that low, VITON is the gold standard for super clean applications.



Solvent Resistant Door Gasket, CVO-5, 18 x 18


These 18″ x 18″  BLACK colored door gaskets fit all Cascade 5 cubic foot vacuum ovens and are made of VITON, a material designed to withstand solvents. They have a max temp of 150°C / 302°F.

All Series CVO-5 (TVO-5) Vacuum Oven Door Gaskets


SIZE:
18″ x 18″
Part Number 3450671

VITON GASKETS :
(Black Color)

Application:
Low Outgassing

Max Temp:
150°C / 221°F



PRO TIP:  Rotate your vacuum oven door gaskets for even wear and longer life.

Solvent Resistant Door Gasket, CVO-5, 18 x 18

$251.68

Item No: 3450724

Solvent Resistant Door Gasket, CVO-5, TVO-5, 18 x 18

These 18″ x 18″ BLACK colored door gaskets fit all Cascade CVO-5 vacuum ovens and are made of BUNA, a material designed to withstand solvents. They have a max temp of 105°C / 221°F.

Gaskets wear out. Remember to clean, rotate and have spares on hand!
