FP1 Filter Press

Contact Us for Pricing

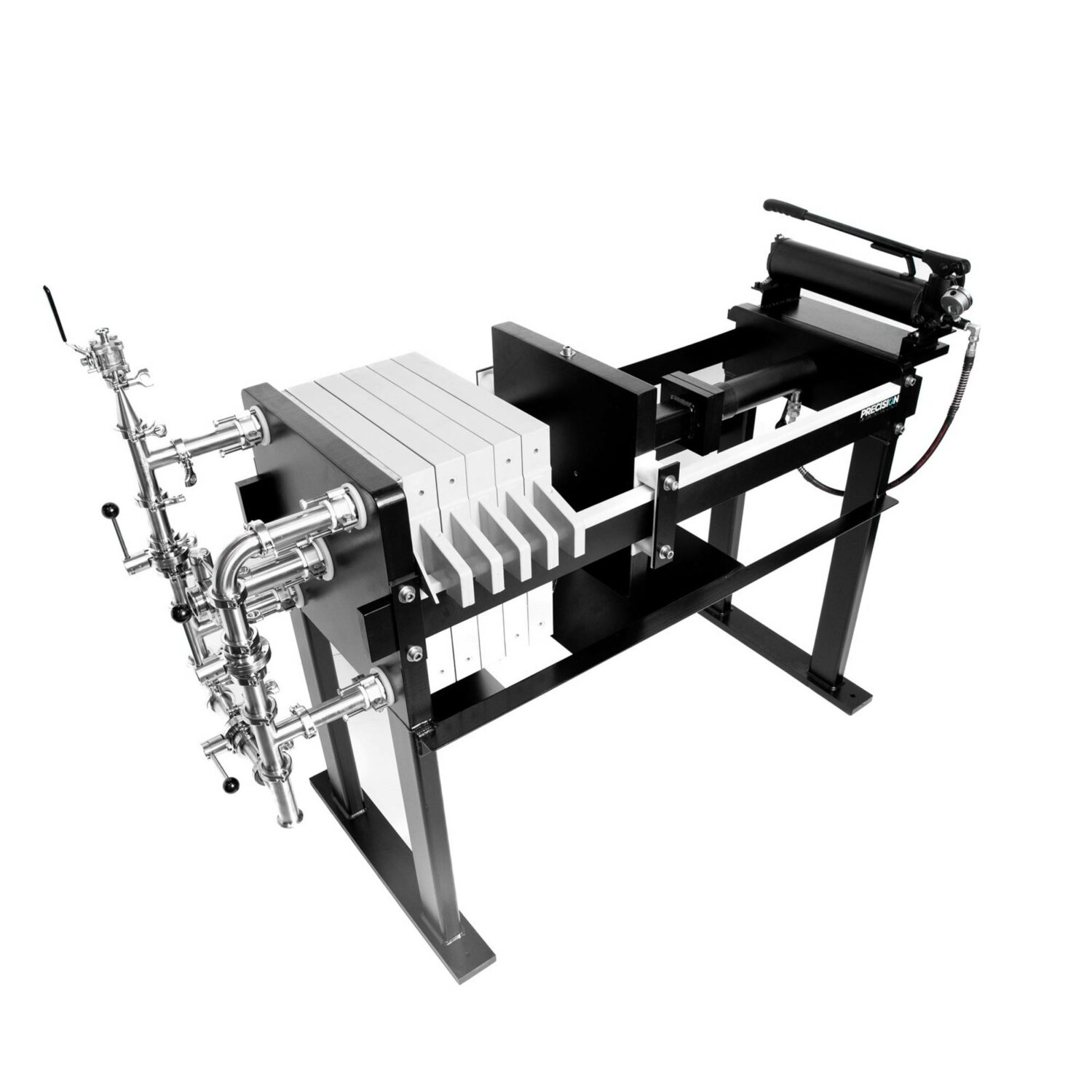

The FP1, by Precision Extraction, is an industrial-scale filter press.

The FP1 is ideal for the post-winterization filtration of crude oil. Utilizing positive pressure, the FP1 can remove fine particles and small particulate from winterized crude solutions efficiently.

System Features:

  • 5 HP 20 CFM Air Compressor required for operation
  • Airblown manifold piping for air drying filter cakes
  • Easier to use, less labor-intensive, and higher throughput compared to candle or bag filters
  • Food grade wetted parts
  • For use in C1D1 facilities
  • Heavy-duty hydraulic cylinder for opening and closing the press
  • Ideal for post-winterization, pressure filtration of crude oil and fine particle filtering
  • Includes advanced spare parts kit

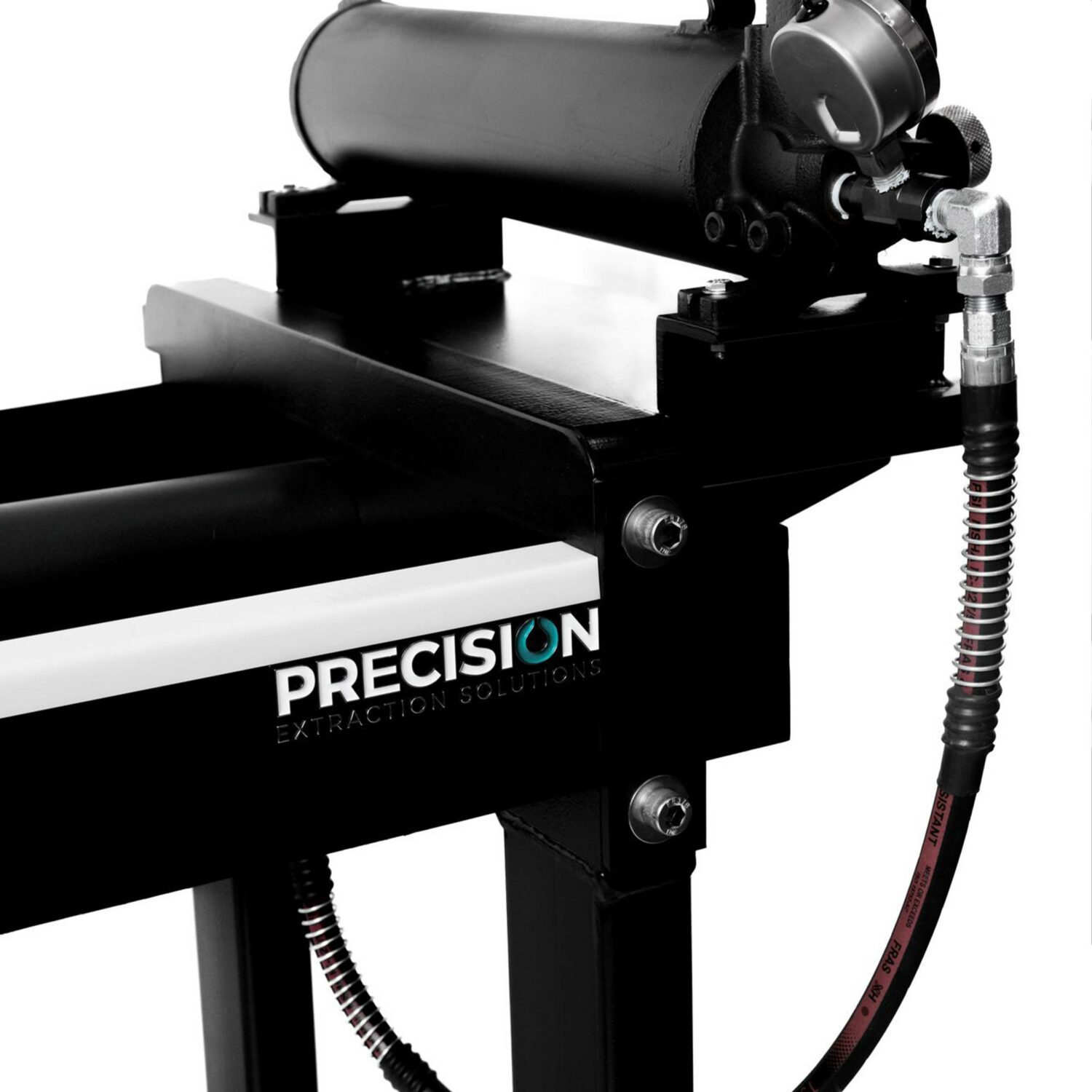

  • Manual hydraulic pump and cylinder

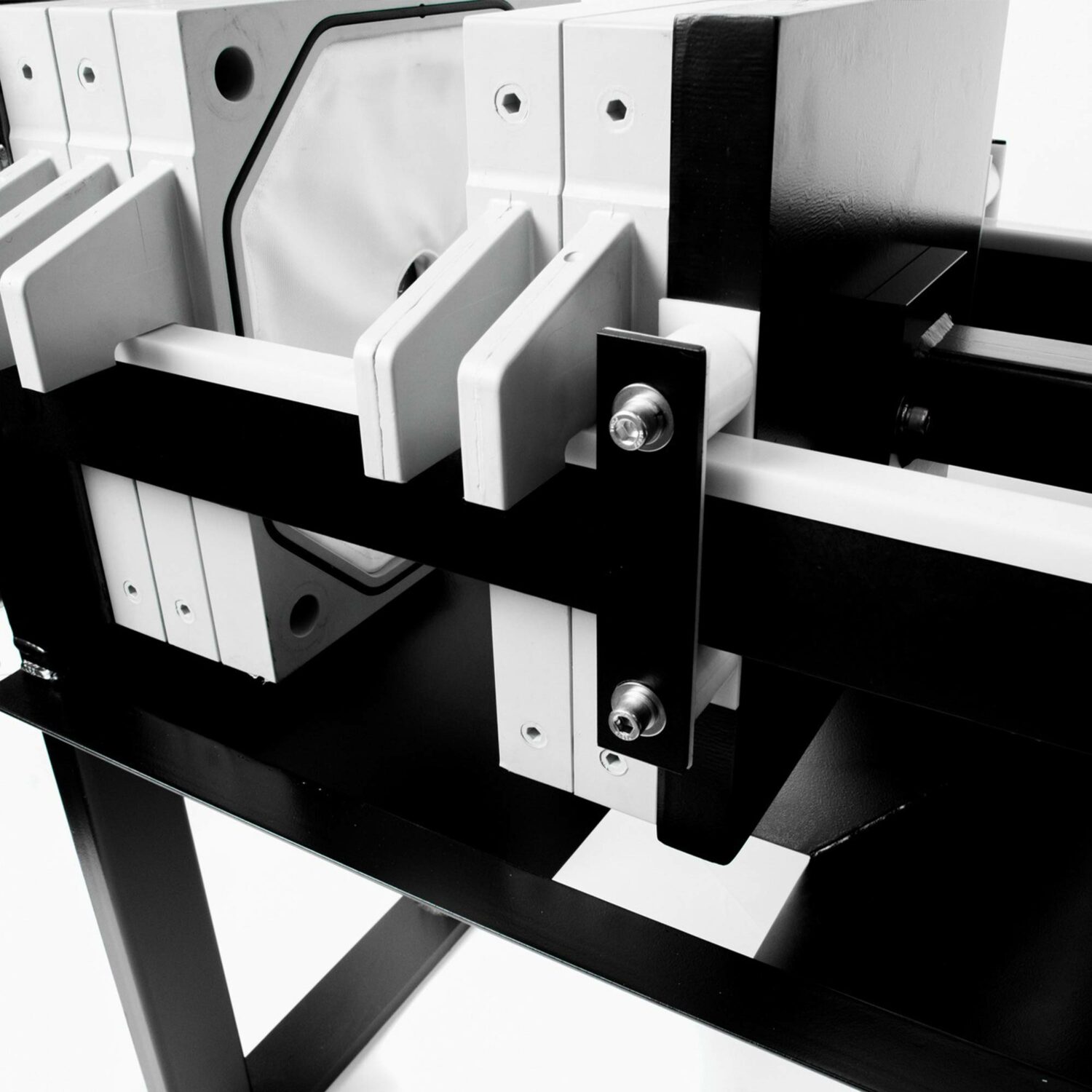

  • Recess, polypro-gasketed plates prevents leaking
  • Up to 3,600 liters of filtering per 8-hour shift

  • Ideal for post-winterization, pressure filtration of crude oil, and fines filtering
  • Two-stage hydraulic piston for easy opening/closing of press
  • Food grade wetted parts
  • Manual hydraulic pump and cylinder
  • Heavy duty hydraulic cylinder for opening and closing of press
  • Recessed, polypro-gasketed plates for leak-free operation

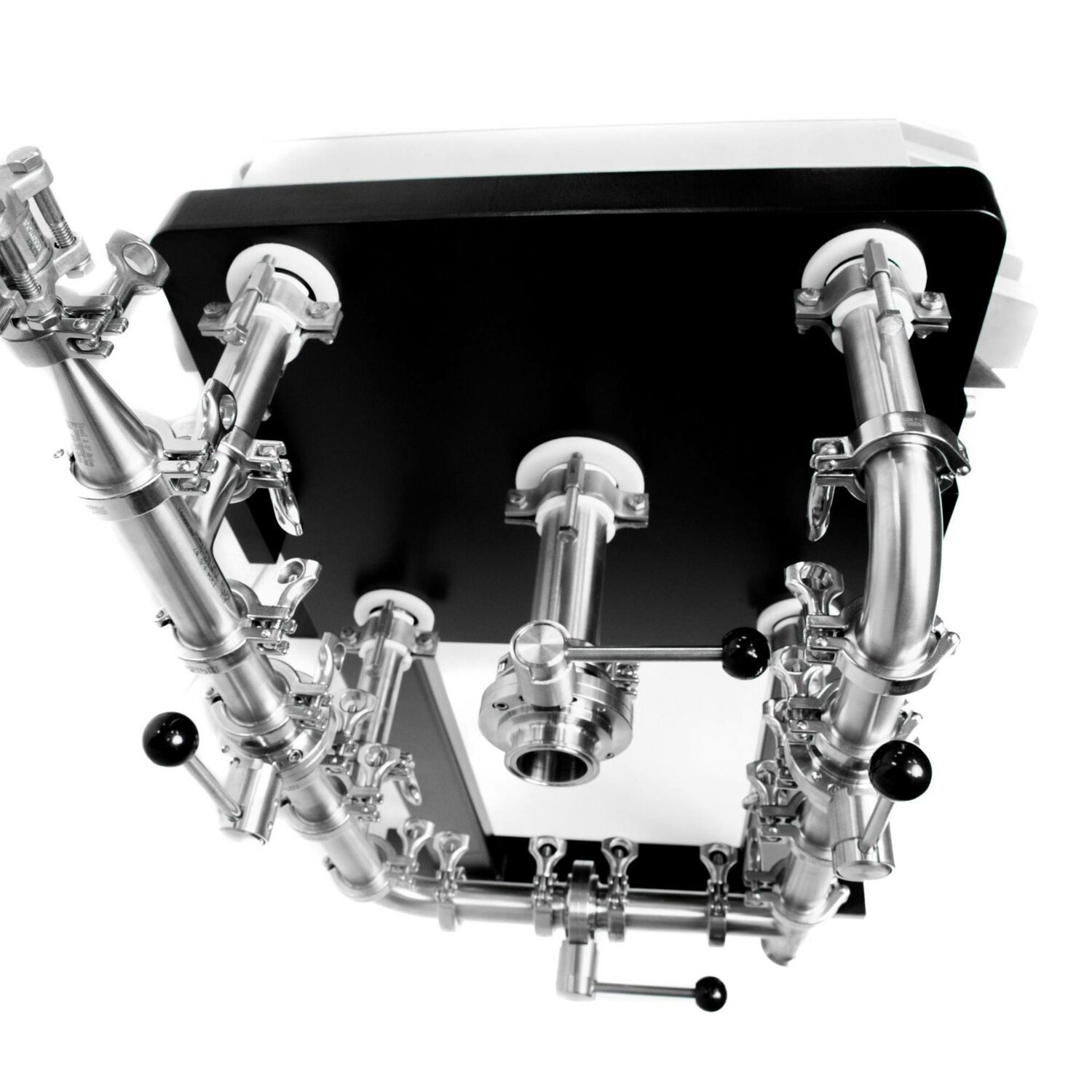

  • Air blown manifold piping for air drying filter cakes
  • Includes advanced spare parts kit
  • 5 HP 20 CFM Air Compressor required
  • Easier to use, less labor intensive, and higher throughput capacity compared to candle or bag filters

  • PSI Certified in all 50 states
  • Class 1, Division 1 Compliant
  • FP1 Filter Press is also approved for sale in all Canadian provinces

  • Warranty** One-Year

  • Dimensions (est.) 75″ L x 32″ W x 52″ H
  • Weight 1,500 lb
  • Filter Area: 13.6 sq ft
  • Air Compressor: 5 HP 20 CFM
  • Operating Temperature Range: -40°C to 37°C
  • Average Flow Rate: est. 2 GPM
  • Air Blow Down Pressure: 15 PSI
  • Filter Plate Size: 470mm
  • Filter Cloth Material: Polypropylene
  • Frame Material: Carbon Steel

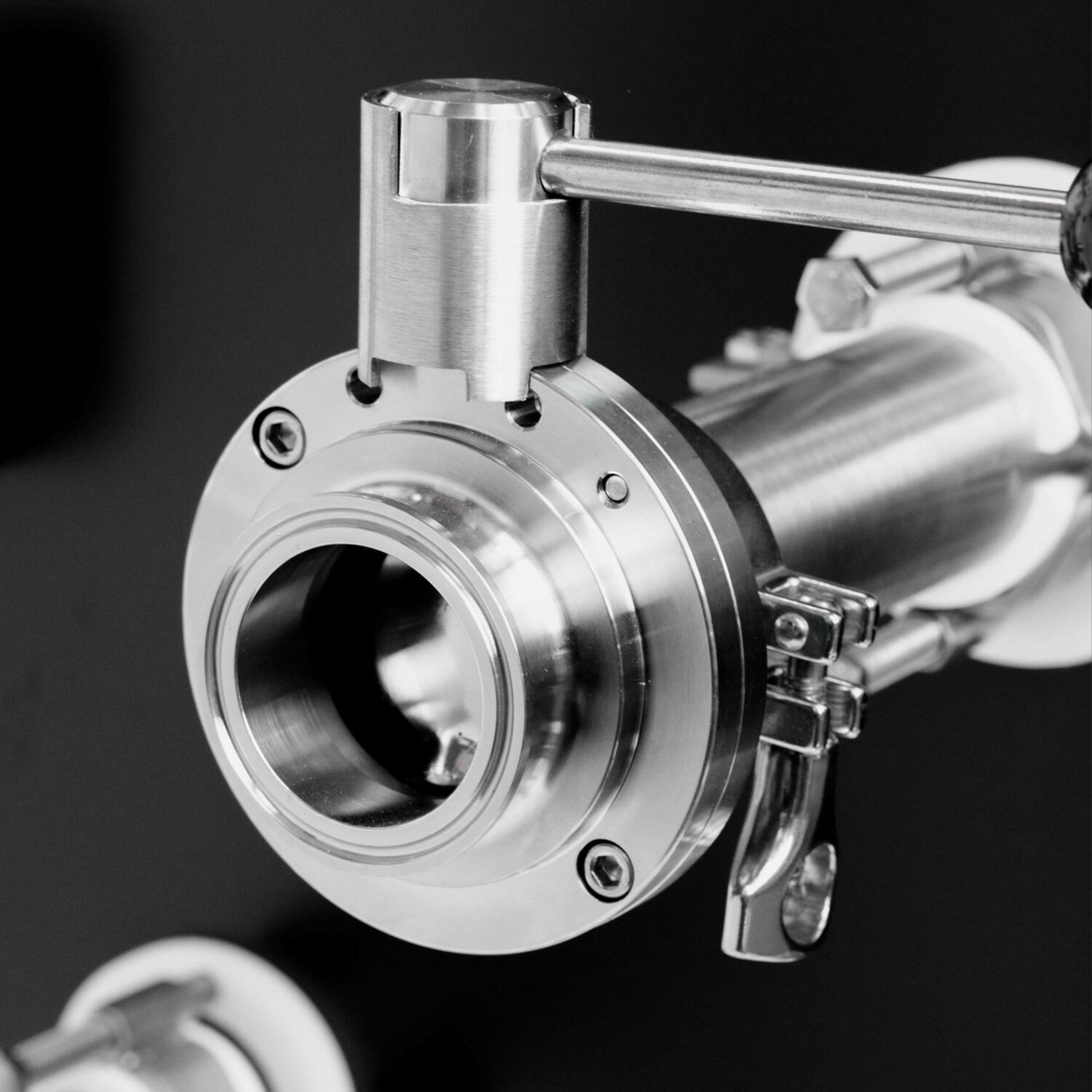

  • Manifold Material: 304 Stainless Steel
  • Sludge Chute: 8″ x 8″ Chute Opening
  • Gaskets: EPDM

You’ve worked tirelessly to get to this point. Let our team take away the guesswork and fast-track your team to success with on-site comprehensive safety and product training.

Our customer service reps and technicians live for this industry – and answer the phone. We’re here to support your staff with any questions or technical support they may have.
