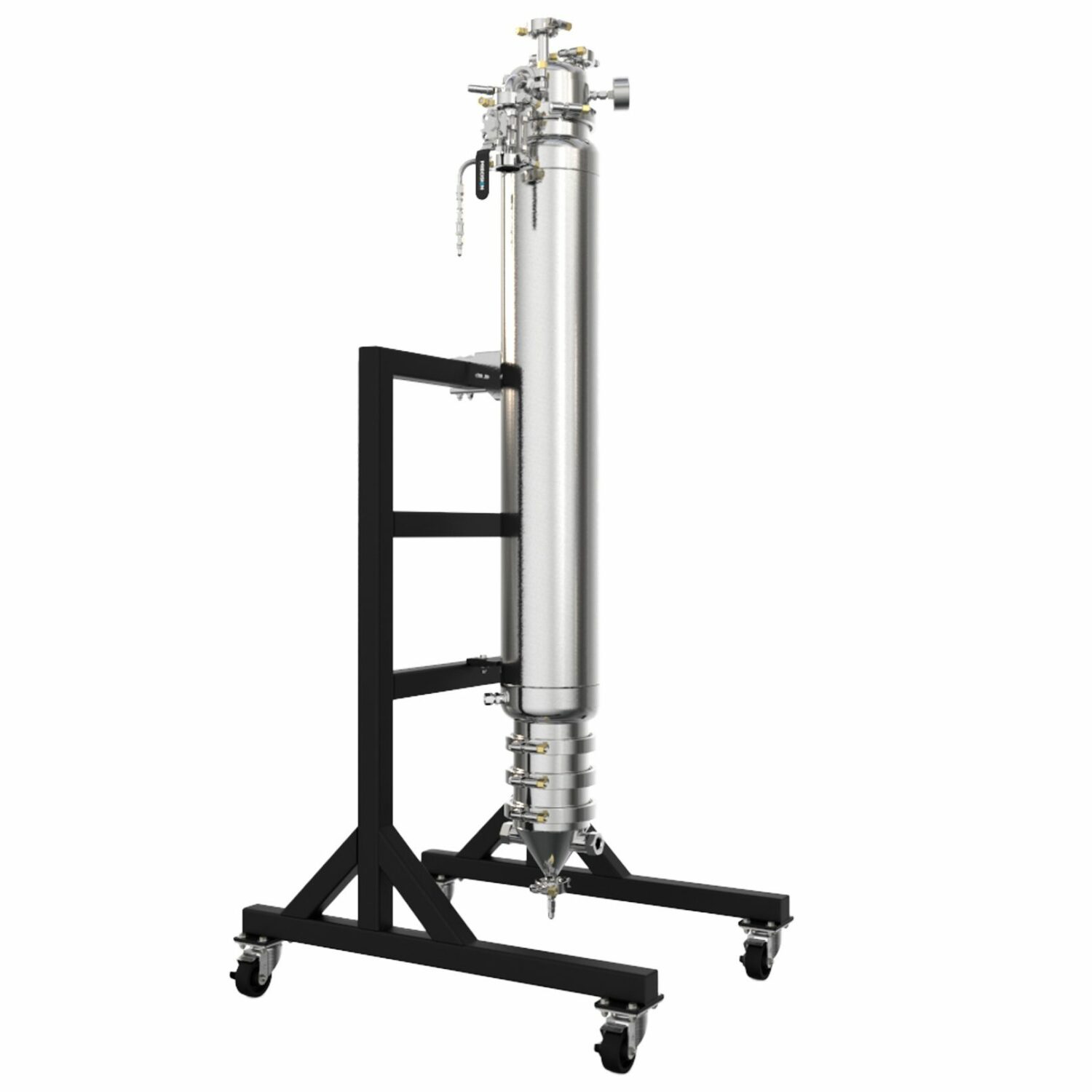

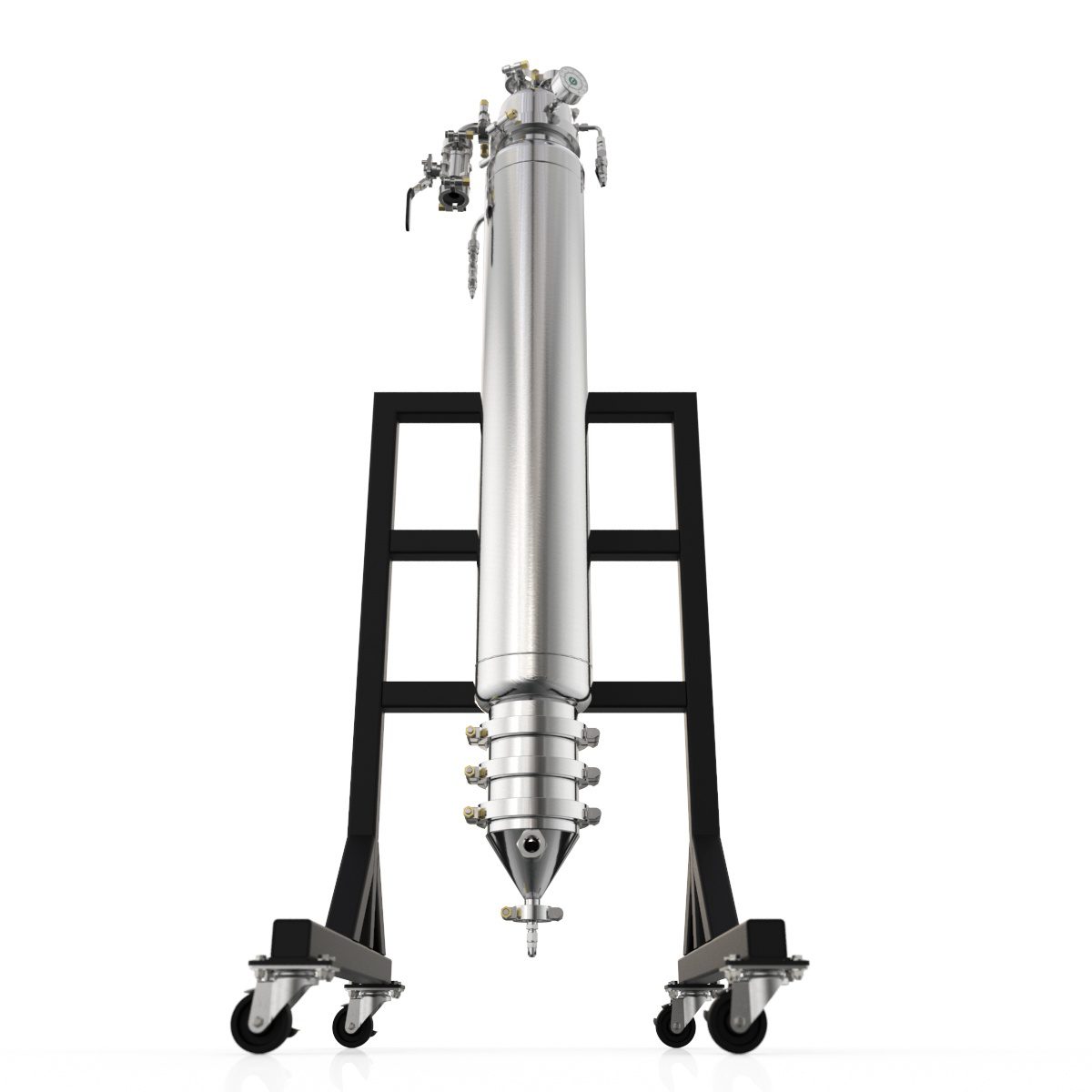

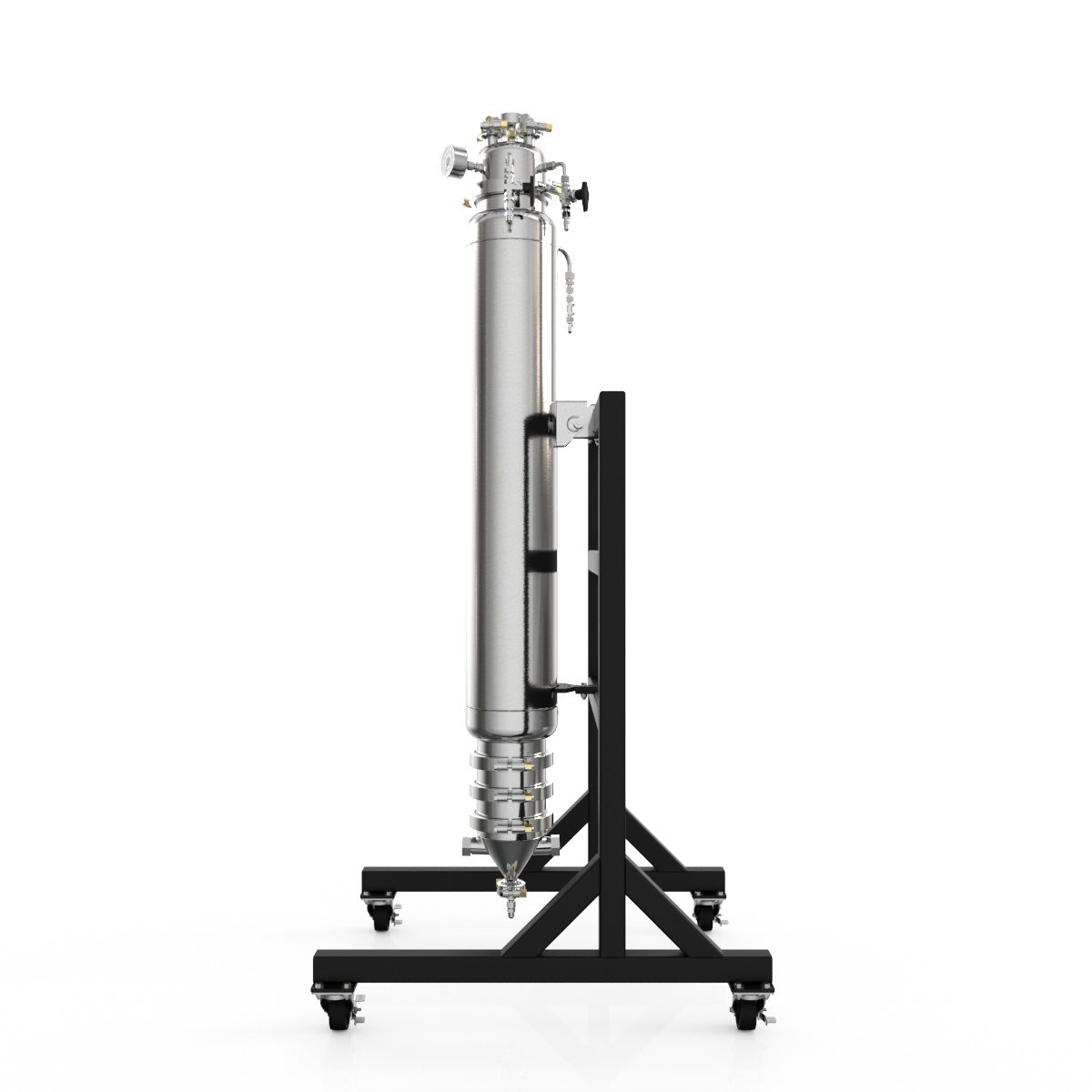

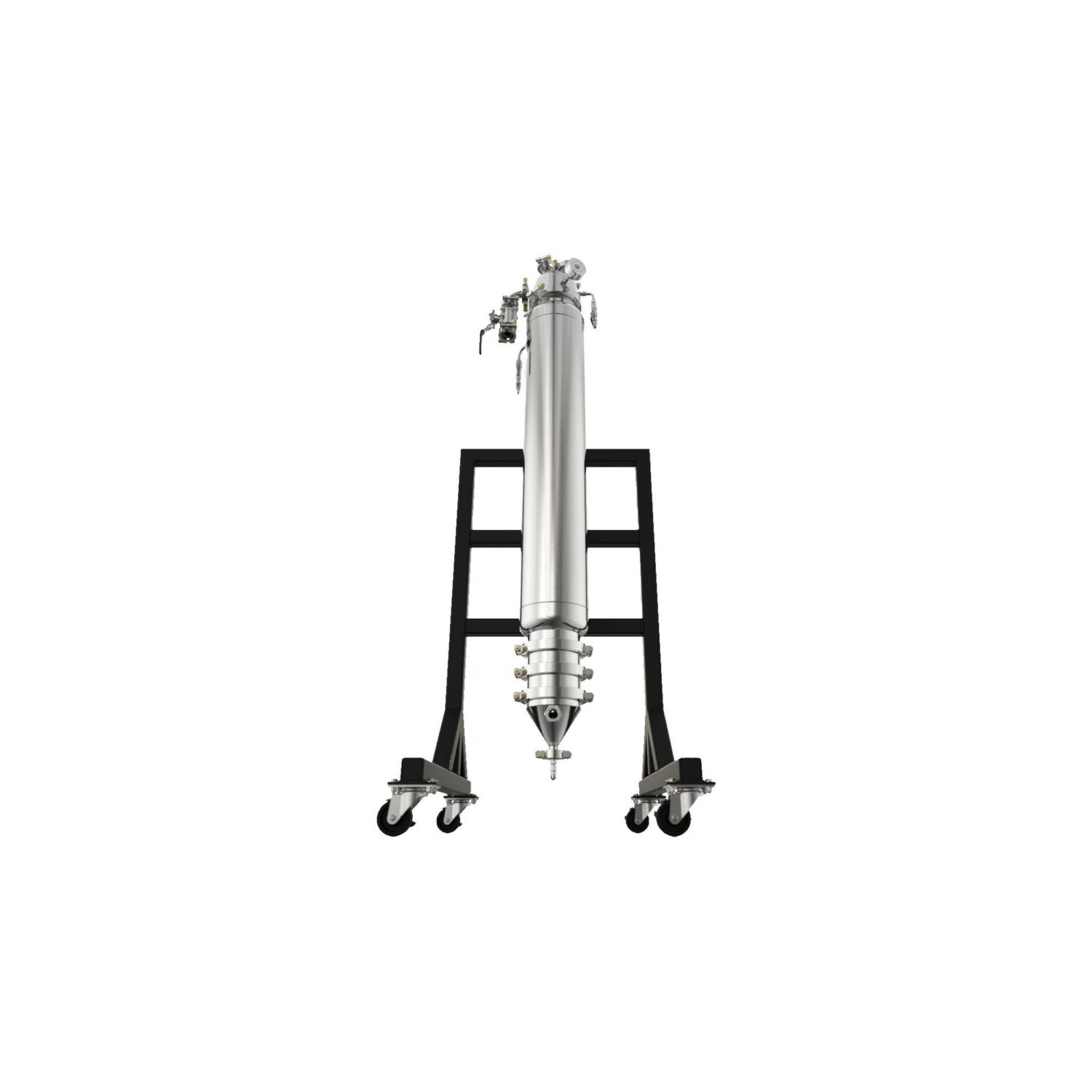

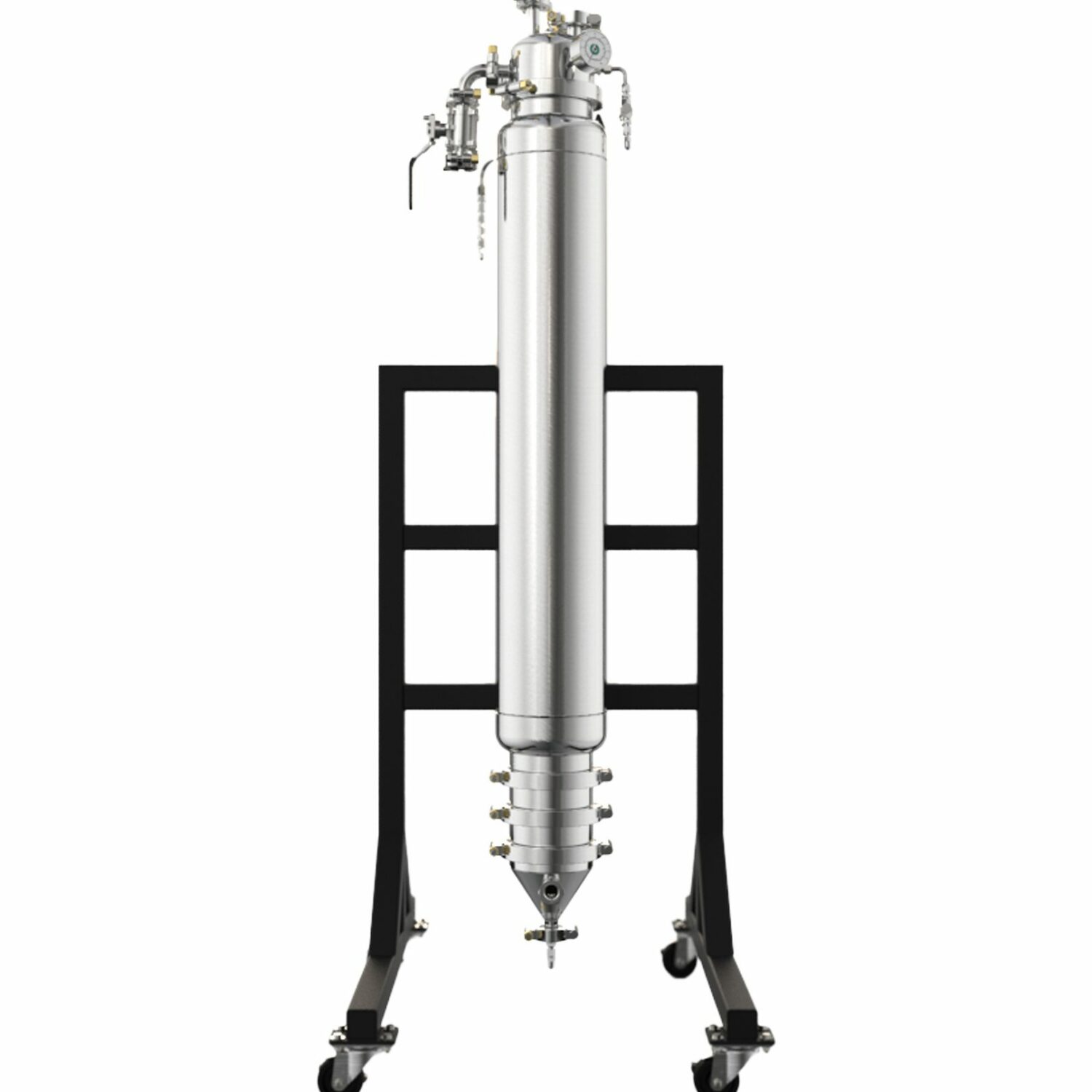

CRC Skid Color Remediation Column & Chromatography

$24,500.00

Convenient inline remediation of cannabis and hemp extracts

The CRC Skid is an inline color remediation column and chromatography system designed to remove a wide range of potential contaminants found in extracts, including heavy metals, pesticides, and other undesirables.

This inline skid was designed to be paired with virtually any primary cannabis extraction equipment.

Versatile & Superior Engineering

The CRC Skid can be used for targeted isolation and remediation of specific compounds such as minor cannabinoids, terpenes, flavonoids, etc.

The isolation of these compounds is excellent for the specialized production of concentrates. Ensuring you have the proper operation for chromatography and efficiency of your filter media for color remediation.

Award Winning Extracts


Award Winning Cannabis Extracts Precision Extraction

Our extraction systems produce more award-winning concentrates than any other brand. Why? Because we refuse to sacrifice our standards. High-quality products require high-quality extraction.

  • Removes a wide range of potential contaminants found in extracts including heavy metals, pesticides, and other undesirables
  • Can be used for targeted isolation of specific compounds such as minor cannabinoids, terpenes, flavonoids, etc
  • Can be used for color remediation in hydrocarbon extracted products
  • Liquid jacketed vessels to maintain process temperature & vacuum
  • Easy fluid transfer via nitrogen manifold
  • Streamlined design for process line ergonomics
  • Manufactured from 304SS
  • Can be paired with virtually any extraction equipment
  • GYLON gaskets

  • Class 1, Division 1 Compliant
  • Built to ASME standards
  • NFPA 58 LPG
  • Engineering peer reviewed

Warranty: 1-Year

  • Dimensions (approx.) 35″ L x 27″ W x 65″ H
  • Weight (approx) 350 lb
  • Shipping Weight 635 lb
  • MAWP 350 PSIG
  • Inlet/Outlet Connection – 3/8” Tube Stub, 3/8” M-JIC

Agrify offers the following on-site color remediation column training programs with our experienced extraction technicians.



CRC Skid Color Remediation Column & Chromatography

Compatible with:
Hydrocarbon Extraction

Media Column Volume:
2.2 L

Temperature:
Rated down to -40°C

Pressure Rating:
350 PSIG

Fluid Transfer:
Nitrogen/Vacuum Transfer

Size:
36″ L x 28″ W x 61″ H

Warranty:
1-Year
