Cascade Dry Ice Cold Trap

$897.00

Cold Trap

Item No: CS-Trap

Got Ice? Save money with this “ice bucket” style cold trap. Fill the internal stainless steel reservoir with a cold slurry mix of ice/ alcohol/ dry ice and set inside the larger steel vessel. The cold surface of the cold trap attracts and condenses the material that would otherwise be ingested by the vacuum pump.

In stock

Cold Trap


Cold traps are a great way to extend the time between vacuum oven rebuilds and oil changes. With this style of a cold trap, the cold is provided by filling the interior reservoir with ice. No additional mechanical refrigeration or power is required.

Got Ice? Save money with this “ice bucket” style cold trap. Fill the internal stainless steel reservoir with a cold slurry mix of ice/ alcohol/ dry ice and set inside the larger steel vessel. The cold surface of the cold trap attracts and condenses the material that would otherwise be ingested by the vacuum pump.

Cold Trap

Cascade also provides large KF-25 size inlets and outlets for the cold trap. This does not impede vapor flow.

  • 3 Quart Capacity (2839 mliters)
  • Sits on benchtop between oven and pump
  • Large KF-25 connections for inlet and outlet
  • 304 Stainless Steel, Viton Seals

Cold Trap


3 Quart Capacity (2839 mliters)

Sits on benchtop between oven and pump

Large KF-25 connections for inlet and outlet

304 Stainless Steel, Viton Seal

Dimensions:

HEIGHT
9″ H without lid
11″ H with lid

INTERNAL ICE RESERVOIR
Depth 7″
Width 6.25″

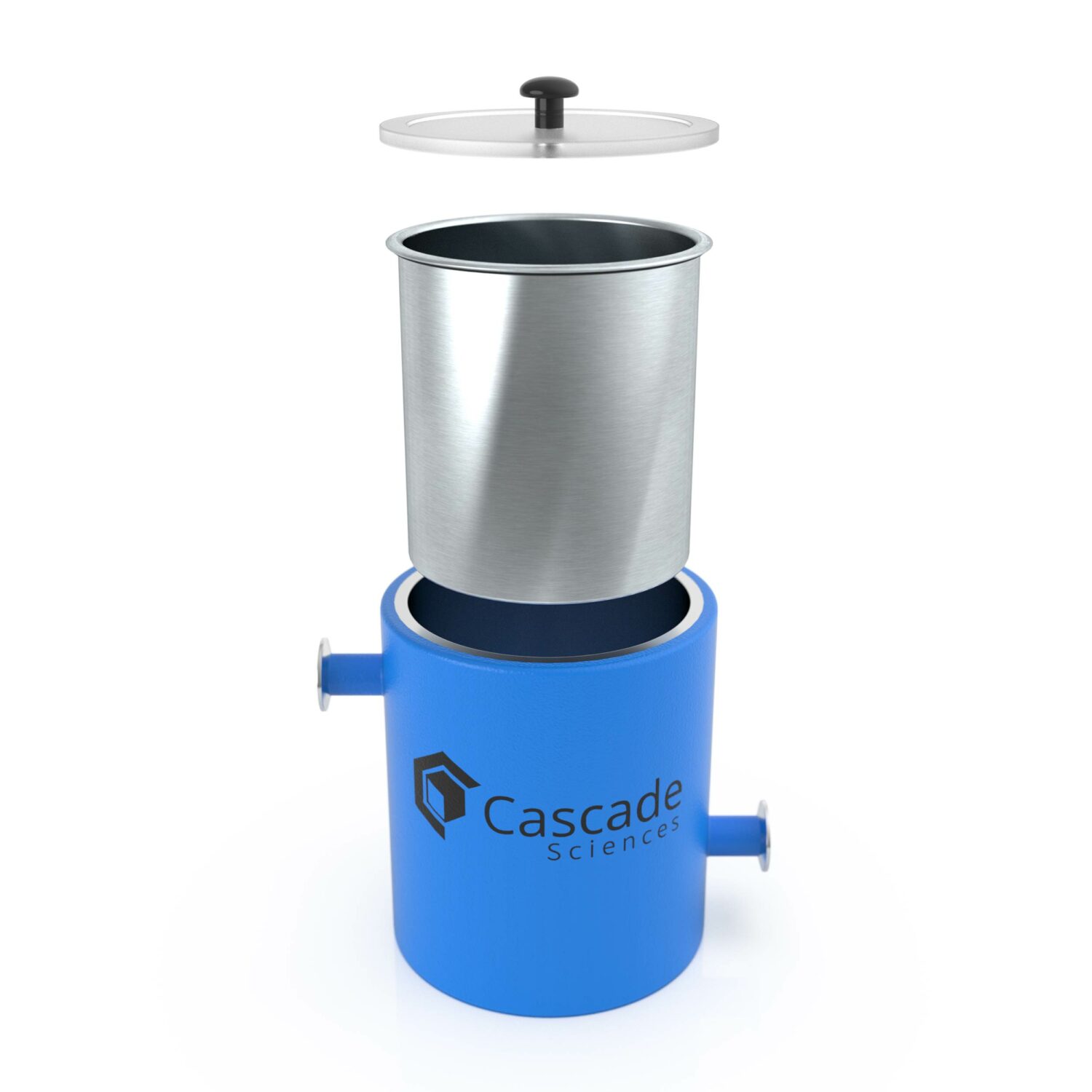

Included Parts:

ICE COLD TRAP EXTERIOR STEEL VESSEL
999-00088

VITON O-RING
6000515

INTERNAL CAN
7930529

ACRYLIC LID
9510512

Cascade Dry Ice Cold Trap

$897.00

SKU:CS-1801010256

Cold Trap

Item No: CS-Trap

Got Ice? Save money with this “ice bucket” style cold trap. Fill the internal stainless steel reservoir with a cold slurry mix of ice/ alcohol/ dry ice and set inside the larger steel vessel. The cold surface of the cold trap attracts and condenses the material that would otherwise be ingested by the vacuum pump.
