24/40 lower joint, GL-14 hose connections.

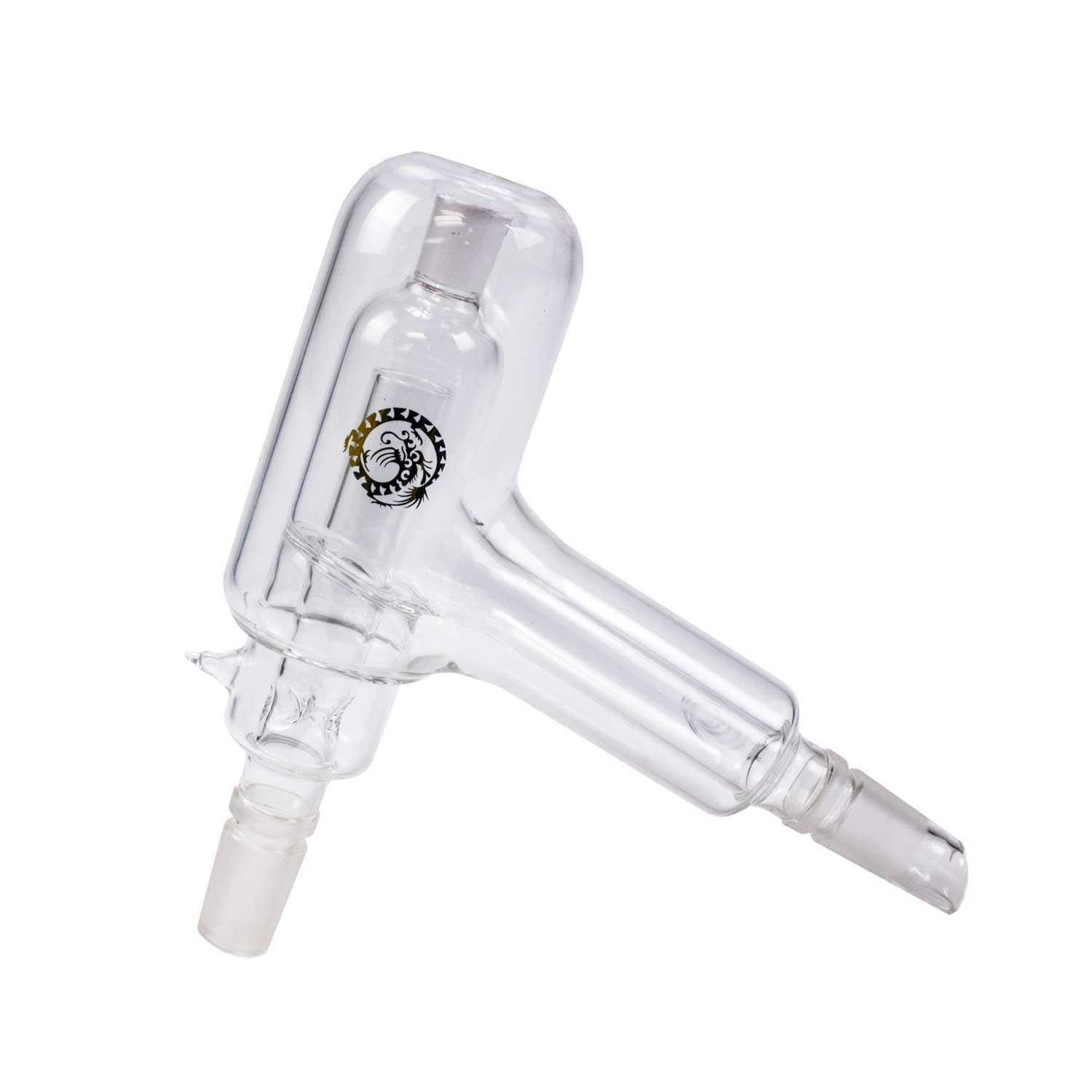

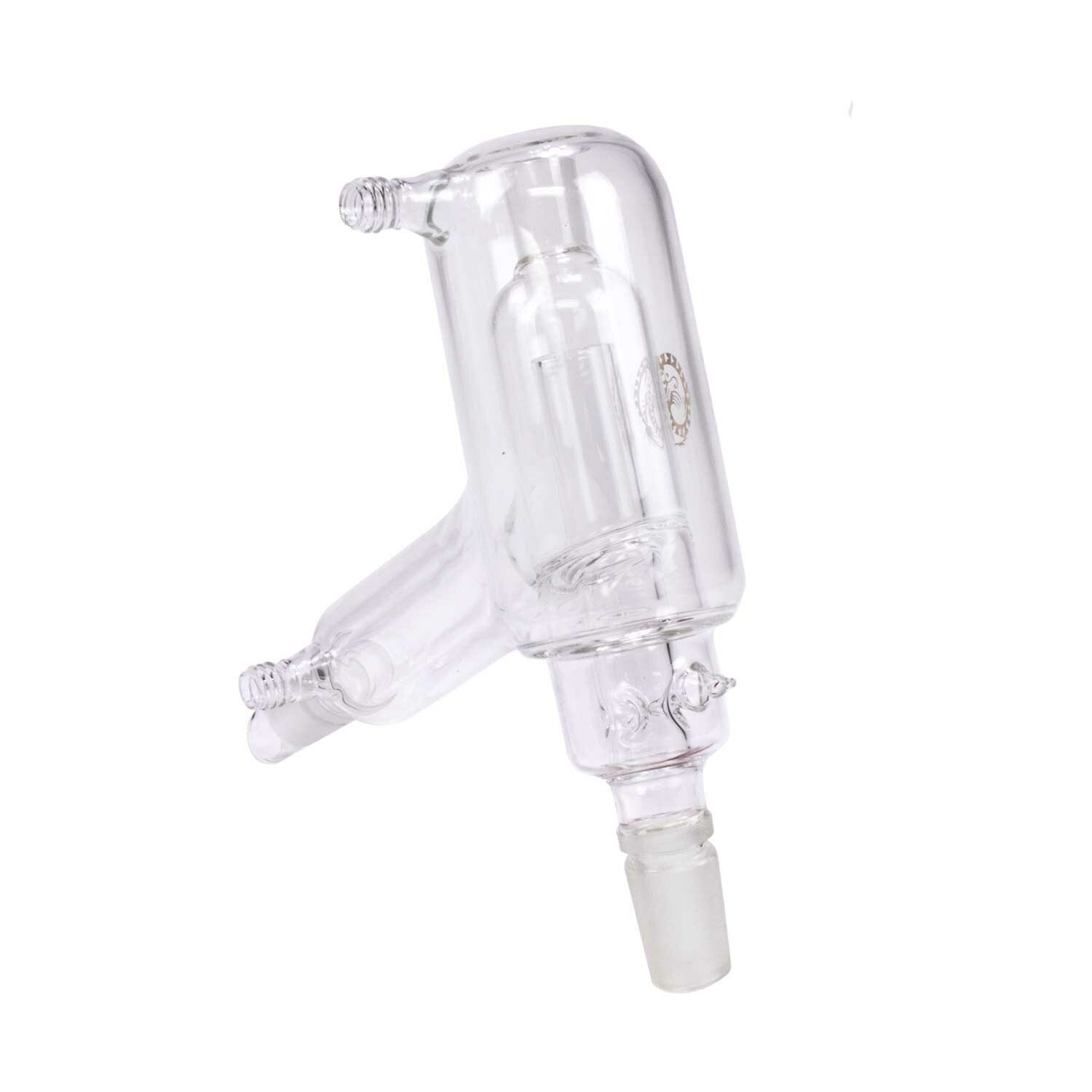

Lab Society now offers the BizzyBee Distillation head for your system!
This distillation head will aid in increasing separation of constituents due to its increased surface area, cooling area, and cup-like catch design.
The new design lets vapors quickly condense and exit the head – exactly what you need! The 24/40 joints both feature an O-Ring, so you can quickly and safely connect and disconnect your glassware.
This product was made in the USA.
Features:
- Packable column – can hold different packing materials for increased separation
- 24/40 condenser joint – with O-Ring
- 24/40 lower inner joint – with O-Ring
- 14/20 top outer joint – for thermometer or thermocouple
- Liquid cooled jacket – Also called a pre-condenser, allows liquid to flow around the inside of the entire distillation head, for enhanced vapor cooling.
- GL-14 ports with high-temperature caps– for quick and easy removal of water lines.
- Three retention fingers – compatible with multiple kinds of packing
- Made in the USA
Note:Â If you would like to use a thermometer or thermocouple with this product, make sure you get the correctly-sized (14/20) thermocouple adapter or a 14/20 jointed thermometer!Â
