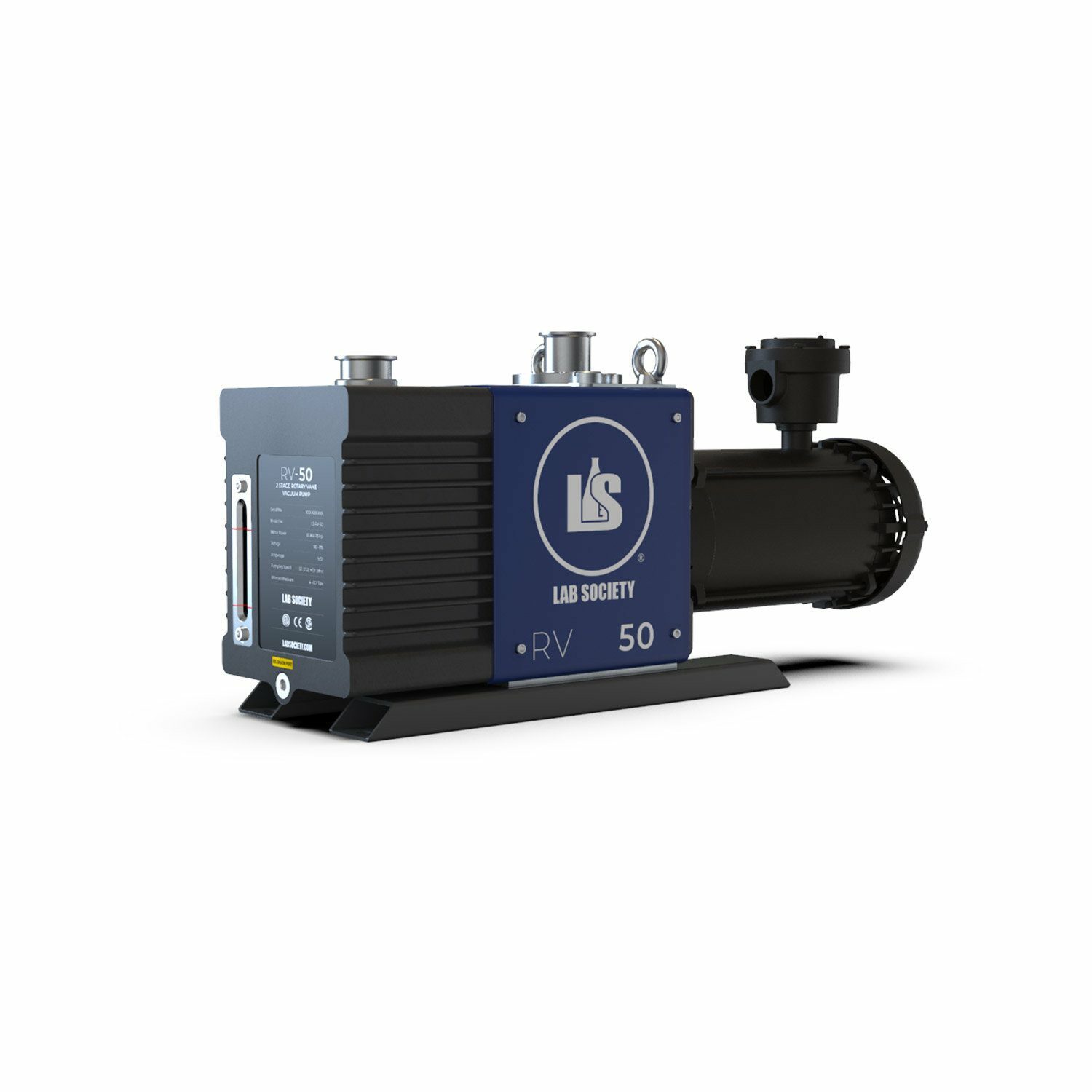

Lab Society 2-Stage Rotary Vane Vacuum Pump

  • Lab Society

From: $2,750.00

SKU:LS-RV-MXP

Oil sealed rotary vane pumps with excellent vapor handling capacity.

New series of oil-sealed rotary vane vacuum pumps have a cost-to-flow-rate ratio better than most (if not all) vacuum pumps on the market today.

They are ideally suited for wet pumping applications such as distillation, freeze-drying, and various other laboratory and industrial applications.

Click here to learn more about the Advanced Pump Exchange Program.

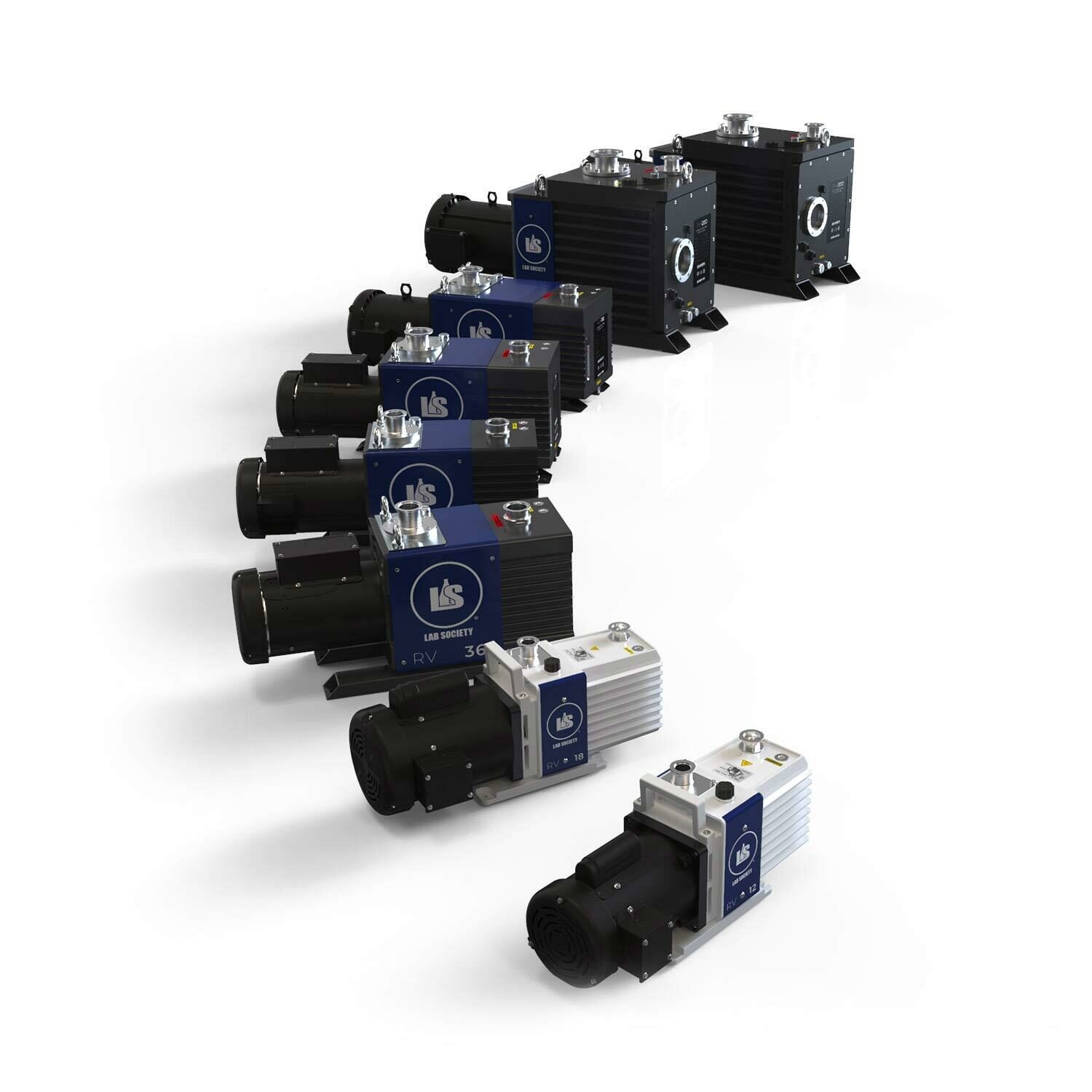

A wide range of pumping speeds to choose from.

LS RV series pumps are available in a wide range of pumping speeds. Each pump is designed for ease of operation and maintenance, no matter what size you choose. The field-proven design of these pumps makes them extremely reliable in nearly any pumping environment.

Built-in safety features to protect your processes and vacuum systems.

All LS RV series pumps include anti-suck-back protection to prevent dust or oil mist from entering your vacuum system. The automatic inlet valve acts instantaneously to provide reliable and safe operation without the worry of contamination inside the system.

Every pump is CSA & ETL certified.

RV Series of rotary vane vacuum pumps offer great pumping speeds, superior vapor handling capability, and quiet operation

Advanced Pump Exchange Program




RV Series Vacuum Pump

  • Oil drain valve for easy draining and oil replacement
  • Gas ballast to help expel harmful vapors
  • CSA, ETL certified
  • Anti-suck-back protection
  • 1 year standard warranty
  • Advanced pump replacement program

MODEL: LS-RV-12 LS-RV-18 LS-RV-25 LS-RV-36 LS-RV-50 LS-RV-70 LS-RV-110 LS-RV-200 LS-RV-300
m3/ hr (CFM): 12 (7.1) 17.4 (10.2) 24 (14.1) 36 (21.2) 48 (28.3) 72 (42.4) 108 (63.6) 196(115.4) 306(180.1)
ULTIMATE PRESSURE w/ gas ballast open (Torr): 4 x 10-2 4 x 10-2 4 x 10-2 4 x 10-2 4 x 10-2 4 x 10-2 4 x 10-2 4 x 10-2 4 x 10-2
ULTIMATE PRESSURE w/ gas ballast closed (Torr): 4 x 10-3 4 x 10-3 4 x 10-3 4 x 10-3 4 x 10-3 4 x 10-3 4 x 10-3 4 x 10-3 4 x 10-3
OIL CAPACITY

(Liters):

0.55 ~ 1 0.65 ~ 1.2 0.75 ~ 1.5 1.2 ~ 2.8 1.2 ~ 2.8 2.5 ~ 4.2 2.5 ~ 4.2 20 – 25 23 – 28
INLET & OUTLET FLANGE: KF-25 KF-25 KF-25 KF-40 KF-40 KF-40 KF-40 ISO63 & KF-40 ISO63 & KF-40
VOLTAGE: 115V or 220V 115V or 220V 115V or 220V 115V or 220V 208V (3ph) 208V (3ph) 208V (3ph) 208V (3ph) 208V (3ph)
MOTOR POWER kW (HP): 0.4 (0.5) 0.55 (0.75) 0.75 (1.0) 1.1 (1.5) 1.5 (2.0) 2.2 (3.0) 3.7 (5.0) 5.5 (XX) 7.5 (XX)
DIMENSIONS (L x W x H in.): 22€ x 10 ½€ x 6 ½€ 23€ x 11€ x 9€ 27 р x 12€ x 8 ¼€ 27 р x 12€ x 8 ¼€ 28 ½€ x 15€ x 8 ¼€ 29€ x 14 ½€ x 10€ 32 ½€ x 14 ½€ x 10 ½€ 41€ x 22€ x 16€ 42 ½€ x 22€ x 16€
WEIGHT(lbs.): 56 74 85 142 147 197 229 513 568



Note:
it is extremely important to change vacuum pump oil and run the gas ballast frequently. A cold trap should also be used between the vacuum pump and application to condense harmful vapors before they enter the vacuum pump.
