Vertical Farming Units

Vertical Farming Vertical Farming Units

  • Fully enclosed and managed micro-climate, complete with LED grow lights
  • Automated irrigation, fertigation, and CO2 delivery
  • Built-in temperature and humidity controls
  • Motorized curtains for photoperiod control

Agrify’s stackable vertical farming units (VFUs) have been designed specifically for cannabis and hemp cultivation at any scale of production.

Integrated with Agrify Insights™, each VFU provides full control over its internal environment to help optimize your grow. You can achieve higher total cannabinoid levels, more consistent terpene profiles, and increased yield per square foot—improving efficiency and elevating profits.

Find out if this is the solution for you

up to 6x

increase in yield per square foot vs. traditional grows

up to 29%

increase in cannabinoid potency

<.3%

variance in chemical profile over 10 harvests

Production Results That Deliver

Consistent Cannabinoid and Terpene Ranges Across a Variety of Strains

Left VFU (1)
Right VFU (2)

Candy Cane:

10 Harvest Batches

  • Cannabinoid Range 0.67%
  • Terpene Range 0.08%

Lemon Haze:

12 Harvest Batches

  • Cannabinoid Range: 0.35%
  • Terpene Range 0.02%

Some Thing Blue:

7 Harvest Batches

  • Cannabinoid Range 0.96%
  • Terpene Range 0.08%

The Bling:

8 Harvest Batches

  • Cannabinoid Range 0.14%
  • Terpene Range 0.35%
Agrify-symbol
Case Study

How Agrify’s Vertical Farming Units Helped to Increase Consistency

-g-quote

“Agrify’s expertise is not only in providing the conditions to cultivate superior flower through their closely controlled VFUs and Agrify Insights™ software platform, but also the unparalleled ability to maximize canopy space for indoor grows.”

Nick Lynch

Owner and Founding Partner of WhiteCloud

Grow Better Cannabis

Grow Better Cannabis

With data-driven insights and complete control over the internal environment of each VFU, you can optimize your grow with precision to produce the highest quality and most consistent flower that will remain in high demand.

Grow More Buds
Scale Your Grow Efficiently
Grow Consistently
Optimize Facility Design

Specifications

PHYSICAL

Length (in) 105.13"
Width (in) 47.88"
Max Height (in) 104.38"
Net Weight (lb) 1000

ELECTRICAL

Power (W) - LED Lights 2,688
Voltage (VAC) 277
Frequency (Hz) 50/60
Power Factor > 0.9

COOLING

Cooling 14,150 BTU/Hr
Cooling Flow Rate 2.88 GPM

PLUMBING

Fresh Water Connection 1/2" NPT 33 GPH (Max), 1 GPH (Typ)
Veg Irrigation Connection 1/2" NPT 33 GPH (Max), 1 GPH (Typ)
Flower Irrigation Connection 1/2" NPT 33 GPH (Max), 1 GPH (Typ)
2x Drain Connection 3/4" barbed connection 4 GPH
Mask Group@2x

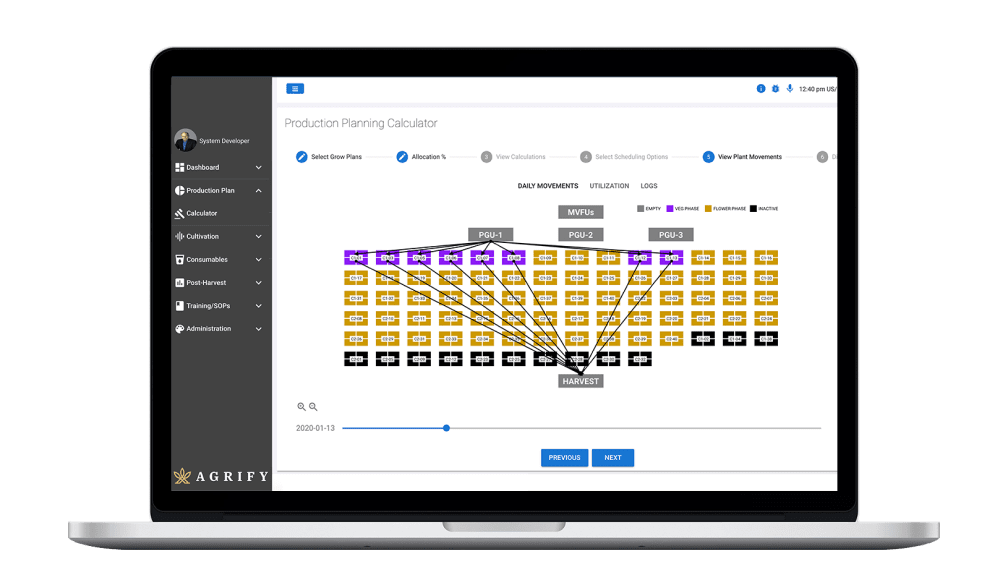

Grow Smarter with Agrify Insights

Optimize your commercial grow operations and manage everything from an individual container to a massive canopy. With Agrify Insights, you can control and monitor facilities and growing conditions in real time and gain key insights into production and profit optimization.

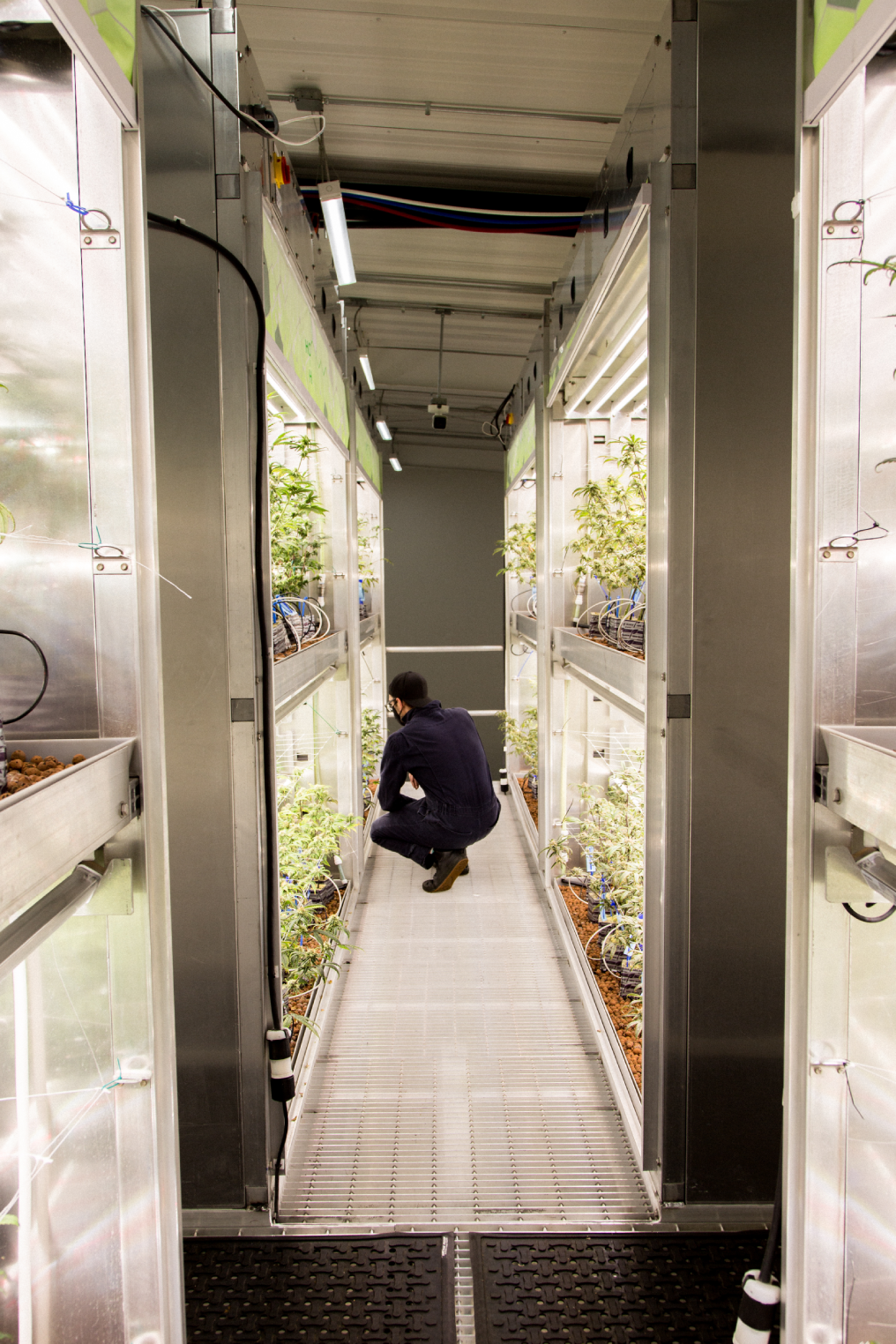

20210203-DCAM2898

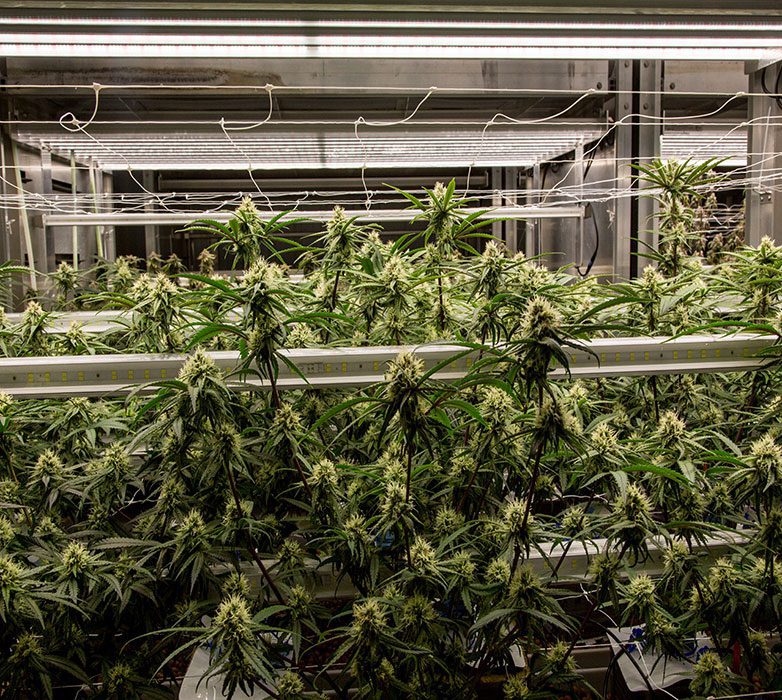

20201115-_CAM2033_new
Cherry-Kush_new

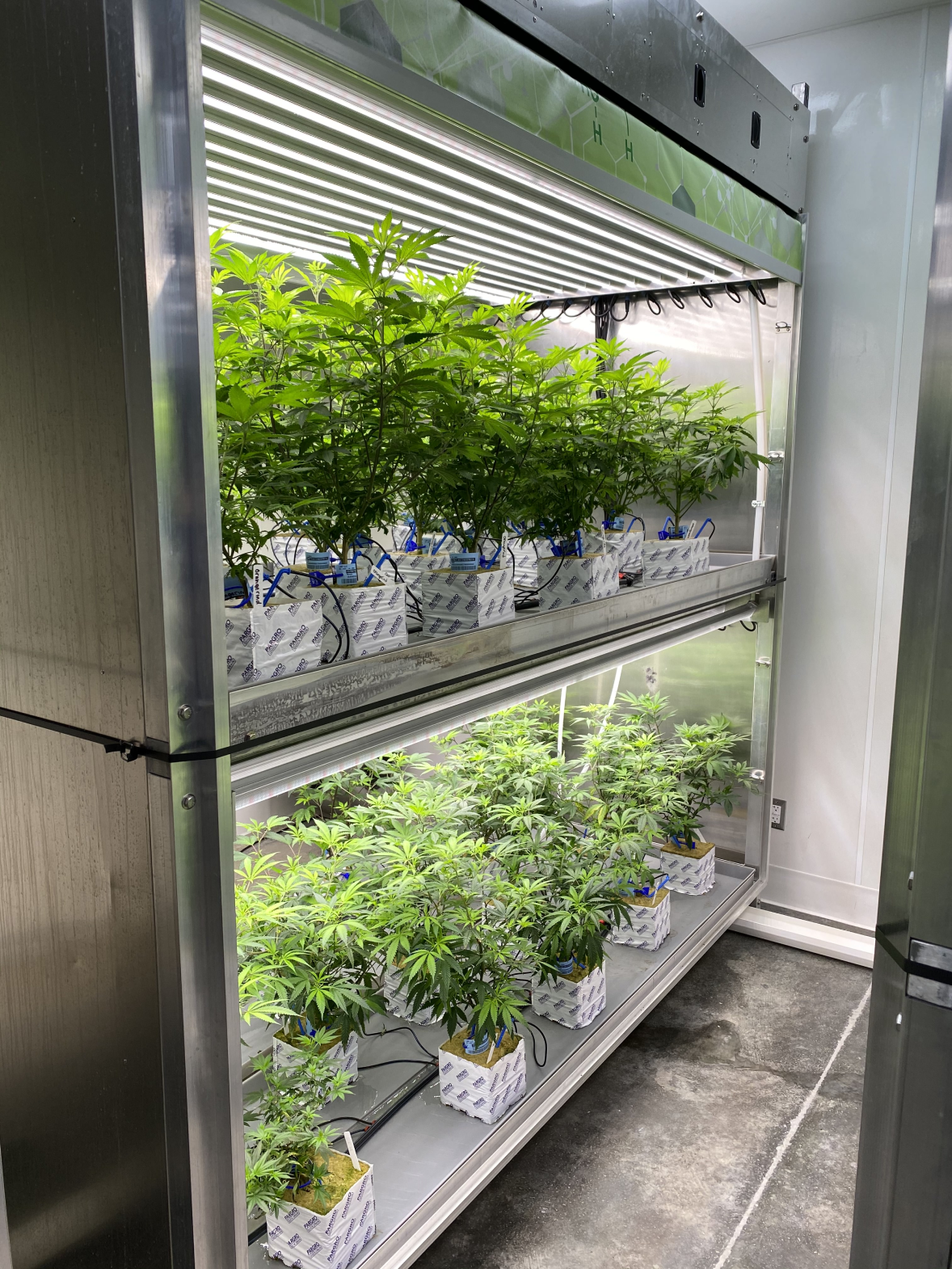

Veg_Plants_in_VFU_(1)
Bubba-Kush-new

FAQs

Yes! Our team of experts works closely with you throughout the entire process. From figuring out how many VFUs you need through facility design to optimizing VFU environmental settings, we’ll help you successfully and profitably grow vertically.

Our approach allows an open-room facility design to maximize available cultivation floor print space while offering superior risk mitigation via individual compartmentalized cultivation chambers.

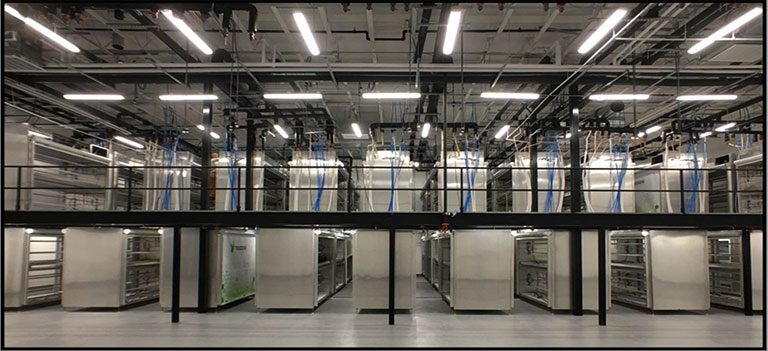

Each VFU supports 2 tiers of the canopy and is designed for stacking up to 3 units tall, and they easily integrate with a mezzanine catwalk system.

Each vertical farming unit provides 64 sq. ft. of a canopy, which can veg/flower 48 to 96 plants over a 32 sq. ft. floor print producing an estimated average of 35lbs+ of dried cannabis flower and 14 lbs of trim each year.

The unit has a motorized curtain on both sides that compartmentalize the VFU to prevent light-leak and the spread of disease that would typically lead to facility-wide crop failure. Contamination can be controlled and limited to the affected unit(s), which are designed with sanitation in mind. From the aluminum frame to the selection of antimicrobial plastics and down to the IP65 electronics and polycarbonate-lensed LED lights, the entire VFU can be easily sanitized.

All VFUs operate independently from one another, capable of reproducing different environments in each one. Each VFU has an Environmental Control Unit (ECU) that is integrated with our proprietary cultivation software, Agrify InsightsTM. This integration allows for precise control and automation over light photoperiod and intensity, temperature, humidity, VPD, CO2, fertigation, and irrigation throughout the lifecycle of the plants.
