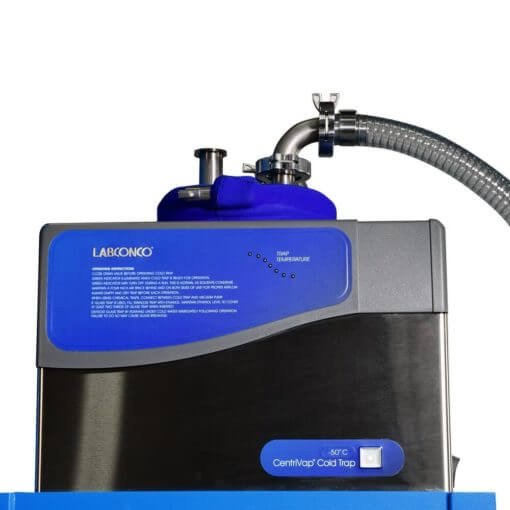

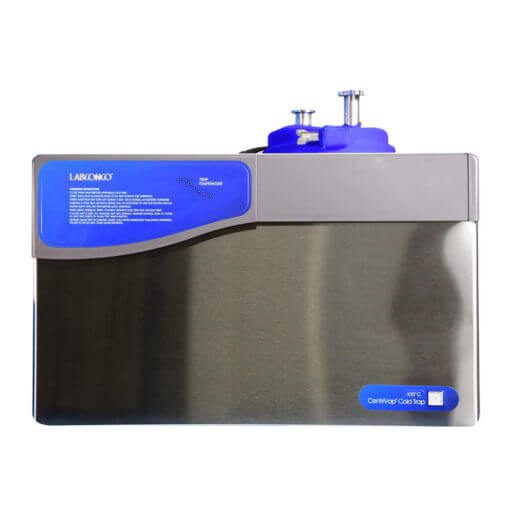

MAXTRAP105 -105°C Vacuum Cold Trap, 120V
The key to quality cold trap performance is: time, surface area, and temperature.
Time: Most cold traps have very narrow inlets and outlets, slowing down your process.
Not Cascade by Agrify’s MAXTRAP105! Full KF25 inlet and outlet connections never reduce flow.
Surface Area: Most cold traps have glass or a smaller surface area to collect the matter your vacuum pump would otherwise ingest. Cascade by Agrify’s MAXTRAP105 surface area is a patent pending series of filter baffles inside the COLDWELL stainless trap.
- Remove shipping foam from reservoir bottom prior to use
- Fill reservoir with 800ml (+/-3.5 cups) ethanol to marked line
- Monitor ethanol levels inside reservoir
- Allow at least 30 mins for trap to cool

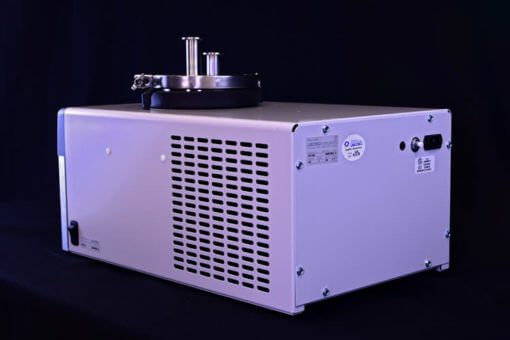

- Keep side vents clear. Allow at least 4″ for airflow
- Monitor interior of stainless trap for clogging
- Short tube – attach to vacuum pump
- Tall tube – attach to vacuum oven
1 Year Warranty
MAXTRAP105 Cold Trap

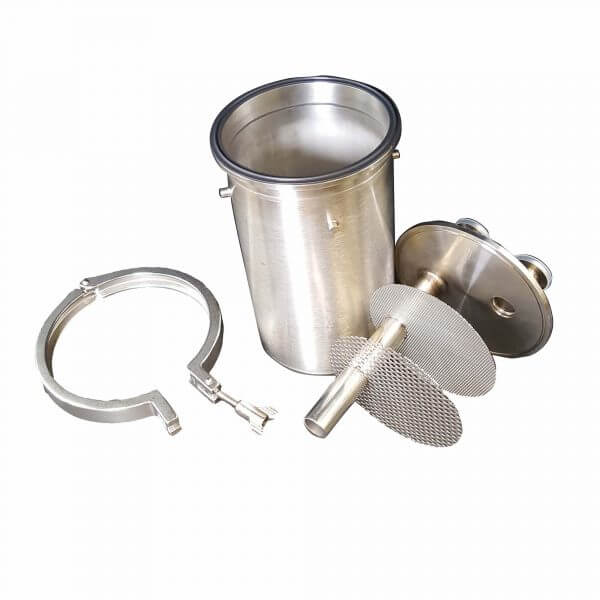

COLDWELL STAINLESS TRAP INSERT:
KF25 Inlet & Outlet
3 Quart Capacity (2839 mliters)
Viton Gasket
Neoprene Insulator Cap

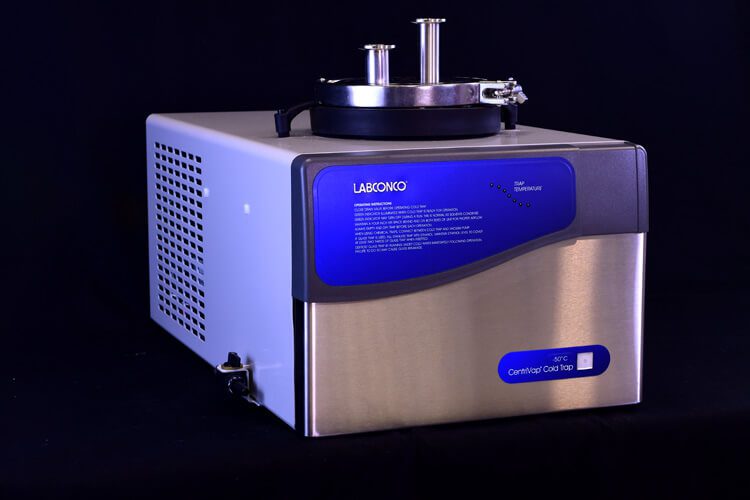

LABCONCO -105°C MECHANICAL BASE:
115V / 1ph / 13 AMP (60Hz)
Cord Included
CFC / HCFC Free Refrigerants
DIMENSIONS:
inches 24.1 W x 23.9 D x 12.6 H
cm 34.3 x 59.7 x 30.5
*Requires 800ml (~ 3.5 cups) of transfer fluid
(ethanol, glycol, cryo-cool fluids)
CONNECTIONS:
1 each 4′ KF-25 flanged vacuum rated line
1 each KF-25 Centering Ring
1 each KF-25 Clamp
WEIGHT:
COLDWELL Stainless Trap: 14 lbs
Mechanical Base: 139 lbs
Shipping Weight: 190 lbs
MAXTRAP Tips:
Safety
At very cold temperatures, solvents and even oxygen can re-condense back into liquid. This is potentially explosive. Liquid oxygen is a light blue color and can condense into a cold trap if a pump has sucked air through the trap when the trap is very cold. Always follow your standard operating procedures and safety guidelines.
Don’t Stop: Keep Processing while trap is being reclaimed, cleaned, refreshed
Cold traps can become full or the captured material freezes and blocks flow. For high moisture, outgassing, 24 hour processing/vacuum purging consider adding a second, spare COLDWELL trap.
The secondary COLDWELL can be dropped into place so processing continues while the full trap is cleaned, defrosted.
