Precise Vacuum Control – “PARC” your system vacuum pressure.

The compound pressure sensor (single KF25 connection) readings are combined, utilizing proprietary software to create a single, blended, accurate reading that controls the automatic vacuum valve.

Having a compound pressure sensor that has measurement accuracy in the full 0.02 to 775 Torr range allows users to precisely control vacuum pressure within a system throughout the range of high-vacuum to atmospheric pressure.

Now you have the ability to set the vacuum control range via the LED/button interface to set the Upper Pressure Limit and Lower Pressure Limit.

The ideal placement for this compound probe is wherever pressure control is desired on a system – or closest to the action.  The secondary thermocouple pressure sensor can be placed at the vacuum source (past cold trap at the pump) to determine ultimate vacuum pressure simultaneously while controlling/monitoring system pressure.

Applications

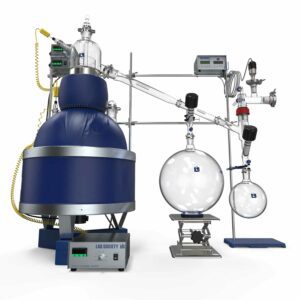

Benchtop Short Path Distillation

• Wide-range of accurate pressure control for various stages of the distillation process
• Pressure control for gently removing volatiles in the early stages of distillation
• Specific pressure control for more precise, repeatable distillations
• Reduce load on cold traps and vacuum pump due to high vacuum depth during volatile/solvent presence in the distillation process
• Operate systems in low-to-medium-to-high vacuum ranges

Thin Film Distillation

• Wide range of accurate pressure control for various stages of the distillation process
• Perform decarboxylation/devolatilization processes strategically in low-to-medium vacuum ranges (to prevent trap/pump overloading)
• Gently remove volatiles and/or terpenes from feedstock by raising system pressure
• Control feed rates by reducing pressure spikes and having static system pressure for consistent distillation
• Dual-purpose single-stage Thin Film Distillation units into decarboxylation/devolatilization units as well as high-vacuum distillation units
• Operate systems in low to medium to high vacuum ranges

The following sensors are included in the system:

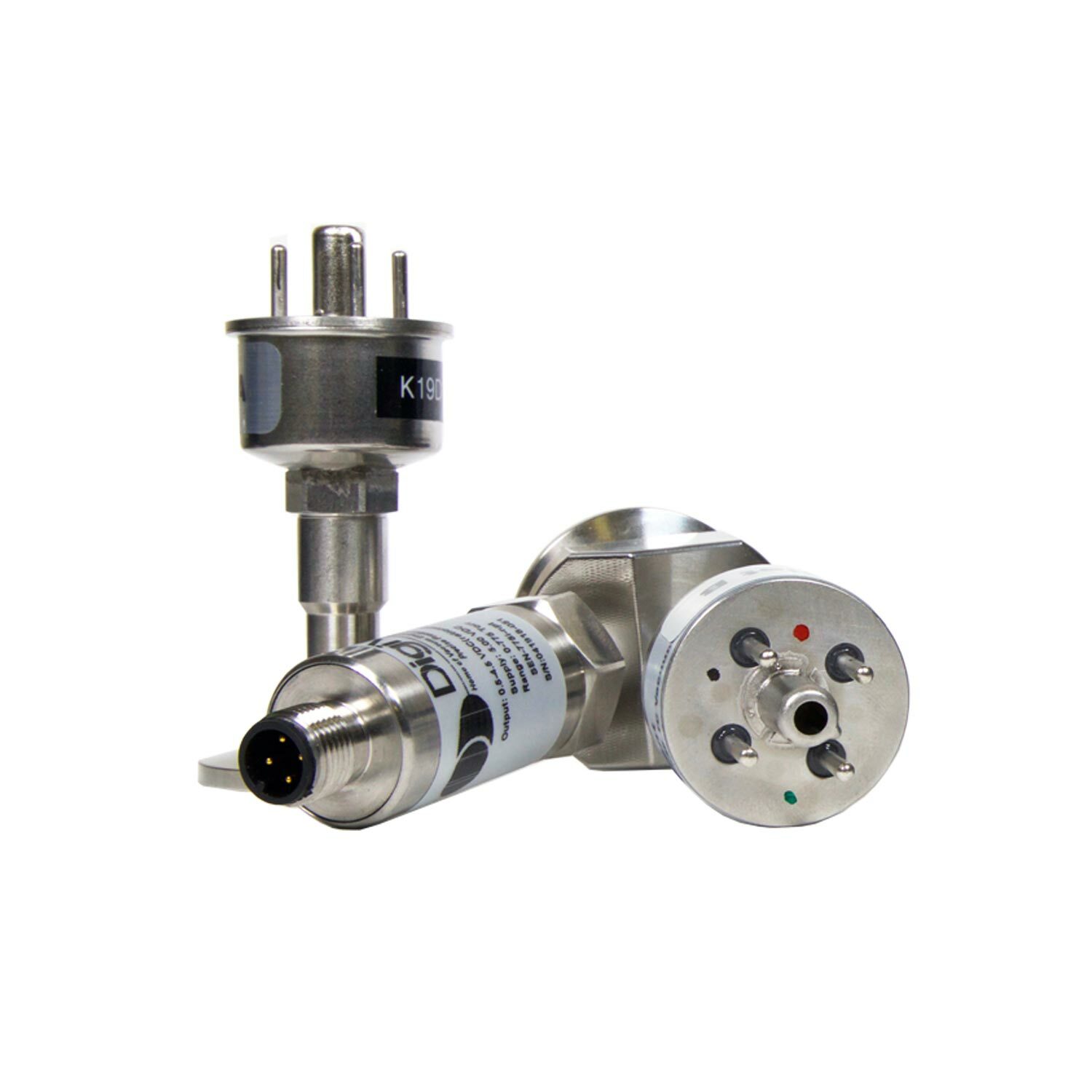

• Compound pressure sensor consisting of two (2) sensor probes, connected via a single KF25 flange connection, that monitor vacuum pressure accurately in two (2) ranges:
  • 0.02 to 2 Torr
  • 2 to 775 Torr
• Thermocouple pressure sensor for accuracy in the 0.001 to 2 Torr and 6 to 800 Torr pressure ranges

PAR-C Specifications:

• Power: 100-240Vac 50/60Hz, 100 Watts
• Compound Sensor Interface:
  • 531 Sensor & 775i Sensor mounted to single KF25 adapter
  • AcRange: 20 mTorr to 775 Torr
• Thermocouple Sensor Interface:
  • 531 Sensor with single KF25 connection
  • Range: 1 mTorr – 760 Torr
• Isolation Valve Orifice: 0.5 inches
• Mount: Side-mounted rod support
• Indicator Lights
• Telemetry Options: USB
