Each complete reactor system includes an air-driven XP motor and a glass body on an open-air stand. The stand provides a smaller footprint while maintaining support.
The stand is made from rugged stainless steel and heavy-duty PTFE-coated aluminum fittings. The support plate design makes it easy for one person to install or remove the reactor body.
Motor mount arms can unlock and swing out, giving easier access to the reactor. The open-air stand provides excellent accessibility. Heavy-duty locking casters give the unit mobility.
Each reactor includes an XP motor with a separate controller and digital display.
The glass body of the reactor includes a jacket for liquid circulation and also has graduation scales on both sides. It is supported by a lower safety support ring. The lid includes 7 necks as well as a large powder addition port.
Ridge clamps on the support stand accept 1/2″ rods and additional supports for expansion.

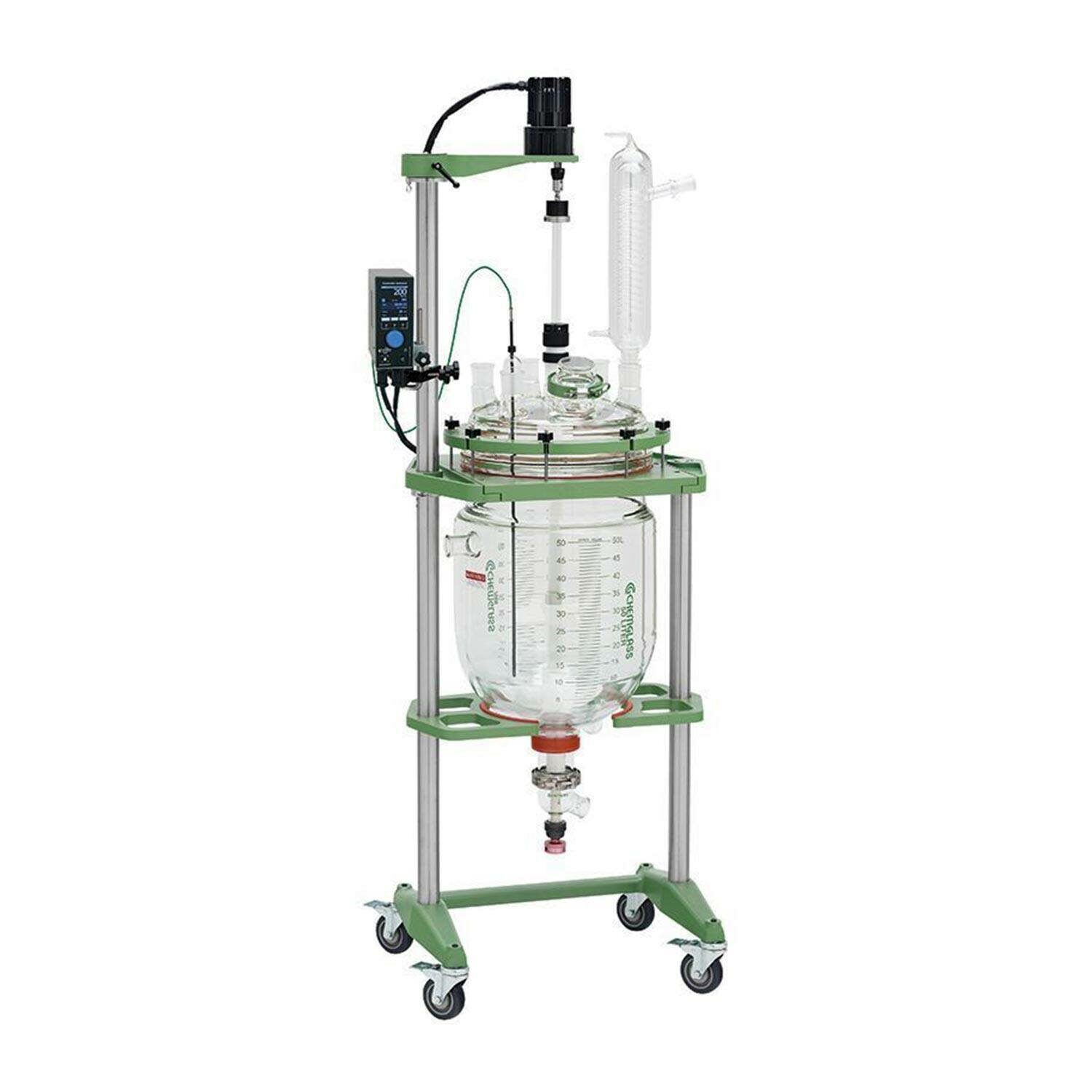

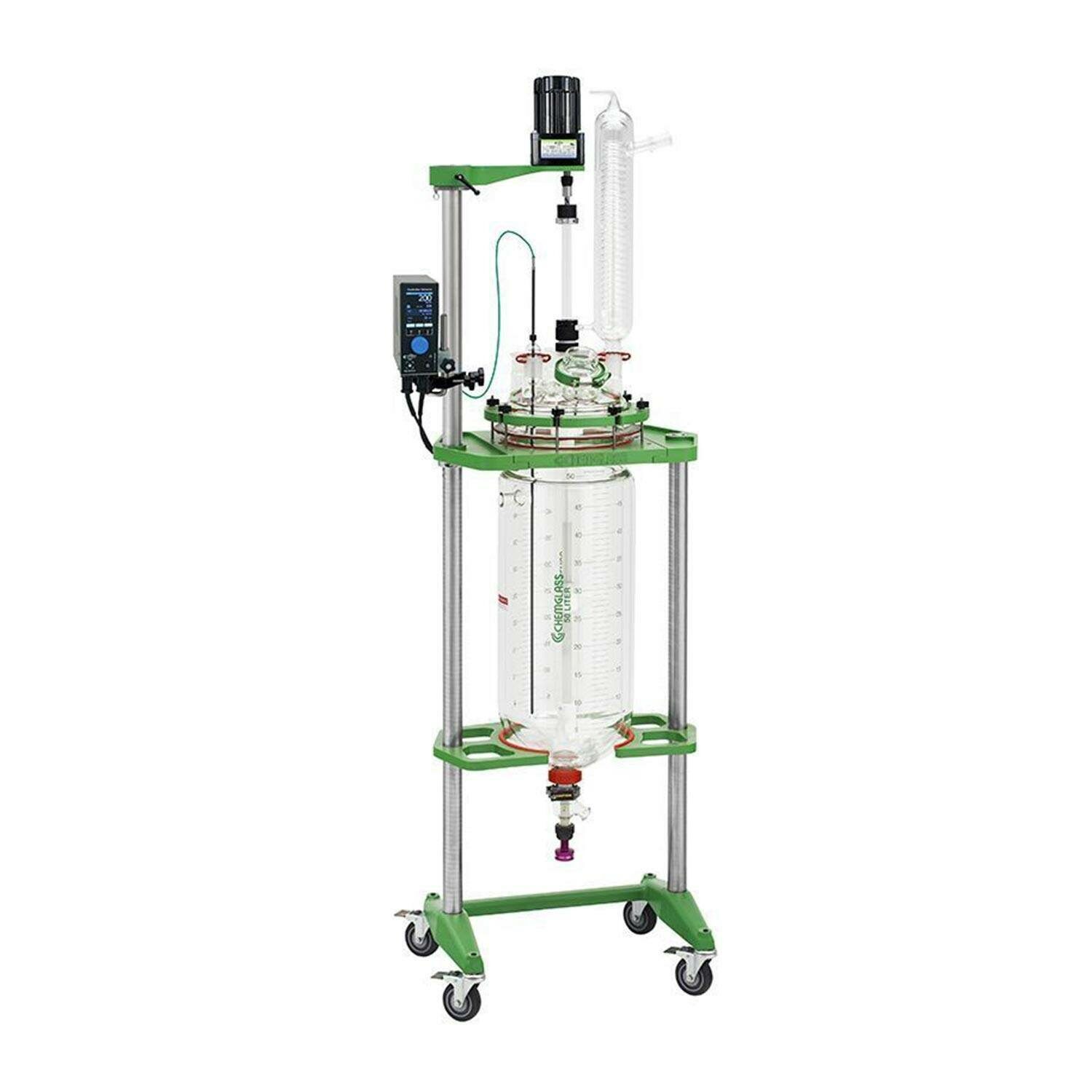

Two models are available, the Tall 50L and the space-saving Squatty model.
| Reactor Type & Capacity | Flange Size (mm) | Support Frame Dimensions
W X D X H (in) |
Approx. Height with Motor (in) | Clearance below drain valve | Max Jacket Pressure
(PSI) |
Max Vessel Pressure
(PSI) |
Max Vacuum
(Torr) |
| 50L Jacketed Tall | 300 | 28.25 x 20 x 83.5 | 87.3 | 16.2 | 12 | 10 | 2 |
| 50L Jacketed Squatty | 400 | 28.25 x 20 x 75.25 | 79 | 15.6 | 12 | 10 | 2 |
