C1D1 EXP Extraction Booth

  • Precision Extraction

Contact Us for Pricing

SKU:PX-EXP-MXP

Safe and easy to install C1D1/C1D2 cannabis and hemp extraction rooms are designed to be easily set up in less than a day.

The EXP’s H-channel construction offers a sleek appearance, a stable atmosphere, and high durability– all without exposed nuts, bolts, cables or wires.

The EXP Rooms have a PSI technical report certification and are pre-approved and ready for professional engineers to field verify in all 50 states, so you can start operation sooner.

x

Quick Set-Up and Top-Class Safety


Designed to be easily set up in less than a day, the EXP’s H-channel construction offers a sleek appearance, a stable atmosphere and high durability, all without exposed nuts, bolts, cables or wires. The EXP extraction room is engineer-peer-reviewed, stamped and compliant for use in all regulated jurisdictions.†

Pre-Approved for Easy Certification


The EXP Rooms are pre-approved and ready for professional engineers to field verify in all 50 states, so you can get operational faster. In partnership with PSI (Pressure Safety Inspectors), our equipment comes with a PSI technical report certification and a field verification voucher to meet your state and local regulations.

Once your room is installed, simply call PSI and schedule your field verification. Simple as that!

PSI Certified

LED Lighting


  • Lights are Class I, Division 2 rated.
  • Lights are ETL & ETL-C listed
  • Instant start (starting temperature at 0 degrees F.)
  • T-8 electronic ballast provides greater energy savings
  • The lamp holders are twist in style
  • The lights feature front/inside access for easy lamp replacement and are equipped with an interlock switch to disable painting operations when light access door is opened
  • Note: fixtures come with whips that run inside panel construction for plug and play connections

Gas Detection Kit


  • Gas Detector with Color Display and IR Sensor
  • Controller, 2 Channel HMI with Touch Color Display and 6 On-board Relays
  • Calibration Kit for 6 Month and Annual Maintenance
  • C1D2 Horn, 24vdc
  • C1D1 Strobe, 24vdc
  • Detailed Drawing and Setup Instructions with Wiring Schematic
  • Technical Support per Site/End-User When Required*
*Installation completed by the end customer

Exhaust & Purge Kits Included

C1D1 EXP Extraction Booth

  • Precision Extraction

Contact Us for Pricing

SKU:PX-EXP-MXP

Safe and easy to install C1D1/C1D2 cannabis and hemp extraction rooms are designed to be easily set up in less than a day.

The EXP’s H-channel construction offers a sleek appearance, a stable atmosphere, and high durability– all without exposed nuts, bolts, cables or wires.

The EXP Rooms have a PSI technical report certification and are pre-approved and ready for professional engineers to field verify in all 50 states, so you can start operation sooner.

x

Features

  • Comes with all fittings and wiring for installation
  • Designed to reduce the number of joints and seams in the cabin’s construction
  • Pre-coated, dual-skin insulated panels provide a smooth fit and finish with no exposed wires or cables
  • Catalytic bead flammable gas detection with adjustable set point between 10-50% LEL
  • Audible and visual IFC compliant alarming systems
  • Explosion proof manual pull station activates high CFM fan but not alarms for off-gassing
  • Booth features vertical wall panels designed to reduce the number of joints and seams in the cabin’s construction

Provided with a Technical Report certification through an Engineer Peer Review from Pressure Safety Inspectors (PSI) that satisfies the Fire Code (IFC and NFPA) for all 50 states and the District of Columbia



EXP Room 1


WORKING DIMENSIONS:

10’W x 8’H x 12’6″D

APPROXIMATE OVERALL DIMENSIONS

10’W x 8’H x 12’6″D

WEIGHT

3,383 lb

SHIPPING WEIGHT

3,690 lb

TOTAL POWER CONSUMED

2 kW @ 110V

FLOW EMERGENCY

100 LFPM

LINEAR PLANE STATIC

1 CFM per 1 CF

MINIMUM FAN STATIC

1,101 CFM

EXHAUST SYSTEM

12” ATA Tube axial in-line exhaust fan*
(1,100 Total CFM @ ¼” s.p.)

3/4 h.p. tri-voltage 220 volts, 1 phase, 60 hz TEFC
high efficiency motor with variable pitch drive
sheave**

PURGE SYSTEM

24” ATA Tube axial in-line exhaust fan*
(6,900 Total CFM @ ¼” s.p.)

2 h.p. tri-voltage 220 volts, 1 phase, 60 hz TEFC high
efficiency motor with variable pitch drive sheave**

LED LIGHTING

3 qty – LED-Fluorescent light fixtures, inside access 48” 4-tube, LED, dual voltage-120/277 with LED tubes included

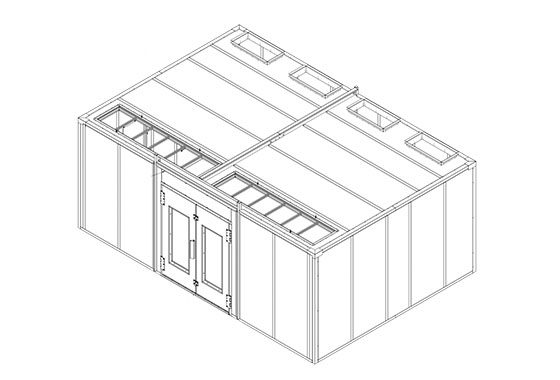

EXP Room 2


WORKING DIMENSIONS:

20’W x 8’H x 12’6″D

APPROXIMATE OVERALL DIMENSIONS

20’5″W x 8’8″H x 13’11″D

WEIGHT

5,365 lb

SHIPPING WEIGHT

5,365 lb

TOTAL POWER CONSUMED

4 kW @ 110V

FLOW EMERGENCY

100 LFPM

LINEAR PLANE STATIC

1 CFM per 1 CF

MINIMUM FAN STATIC

2,200 CFM

EXHAUST SYTEM

18” ATA Tube axial in-line exhaust fan*
(2,200 Total CFM @ ¼” s.p.)

1/2 h.p. tri-voltage 220 volts, 1 phase, 60 hz TEFC
high efficiency motor with variable pitch drive
sheave**

PURGE SYSTEM

30” ATA Tube axial in-line exhaust fan*
(14,400 Total CFM @ ¼” s.p.)

5 h.p. tri-voltage 220 volts, 1 phase, 60 hz TEFC high
efficiency motor with variable pitch drive sheave**

LED LIGHTING

6 qty – LED-Fluorescent light fixtures, inside access 48”  4-tube, LED, dual voltage-120/277 with LED tubes included



*Tube axial fans feature a continuously welded housing for an airtight seal. The propellers are non-sparking cast aluminum for consistent air velocity at higher static pressures. The universal motor plates will allow adjustable belt tensioning. The bearings are of premium air handling quality, self-aligning, and have an L10 life of 40,000 hours. The belt guard provides protection from the rotating pulley (OSHA Requirement). Fan has been designed per AMCA 210 Standards.

**Motors feature a heavy gauge steel frame, double sealed ball bearings that are mechanically locked on the shaft end, and bolt on motor base for easy removal. The service factors for the motor are 1.15 for 3-phase power and 1.0 on 1-phase power.



1-year manufacturer’s warranty on supplied equipment. Any equipment needing replaced due to a manufacturer’s malfunction will be replaced under the warranty clause. Labor will be charged.
