Home Catalog TruSteel Decarboxylation Vessel (10 Gallon)

TruSteel Decarboxylation Vessel (10 Gallon)

Contact Us for Pricing

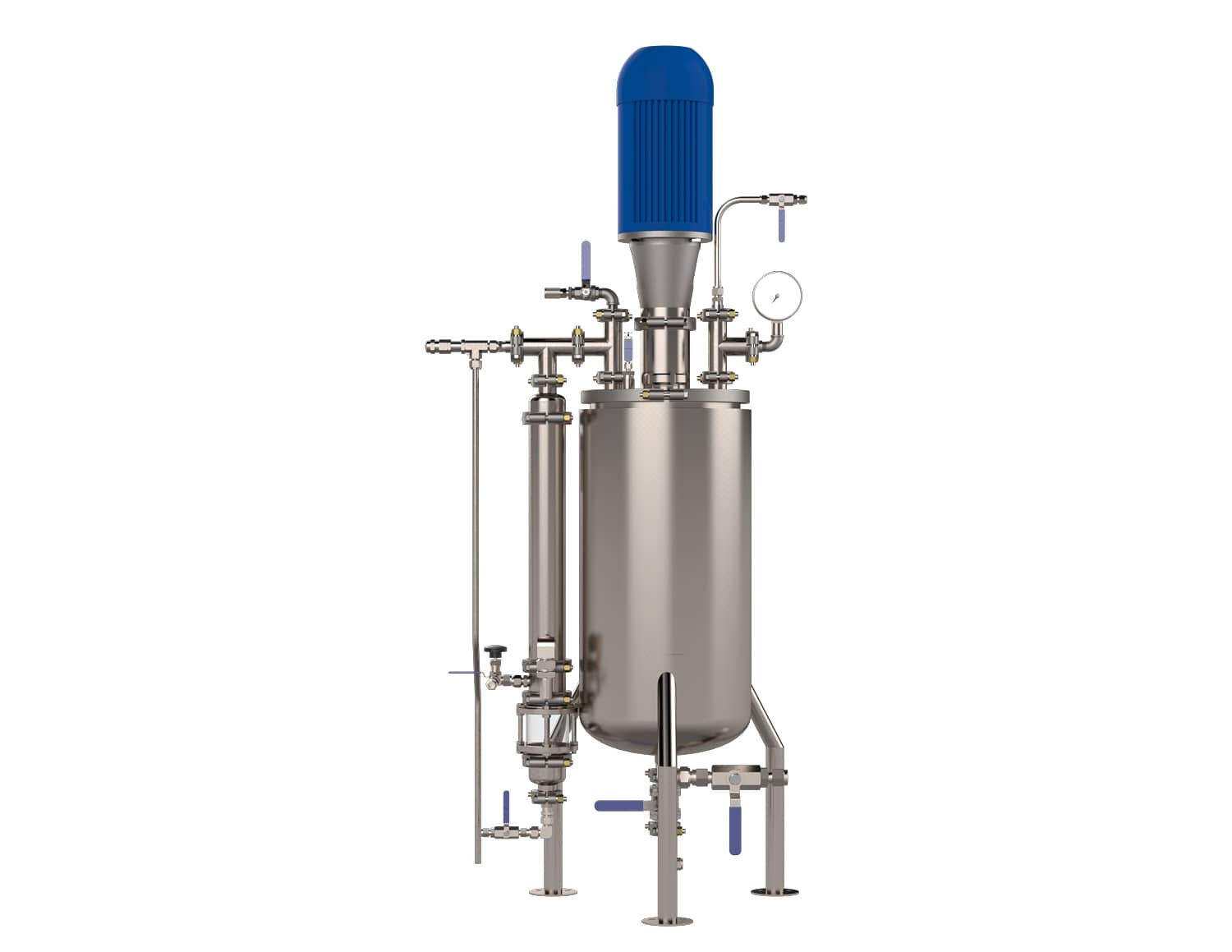

The TruSteel DR10 is a batch reactor system for decarboxylation and can hold up to 10 gallons in a single batch.

The DR10 is completely jacketed allowing for precise heating as well as mixing with the powerful overhead stirrer.

The DR10 has vacuum and inert gas connections as well as a secondary condenser to trap any volatiles before they enter the pumping system.

The DR10 can perform batch decarboxylation on batch sizes up to 10 gallons (38 liters).

The DR10 is engineer peer-reviewed and certified for use in 6 states. It is also UL compliant and assembled and built in the USA.

Maximum Batch Capacity: 10 Gallons / 38 Liters
Footprint (L x W x H ft.): 2 €™ x 2 €™ x 5 €™
Warranty: 1 Year
Chiller Electrical: 230V/1~/12A
Chiller Dimensions (L x W x H in.): 26 € x 19 € x 34 €
Chiller Weight: 220lbs
Vacuum Pump Electrical: 115V/1~/4A
Vacuum Pump Dimensions (L x W x H in.): 12 € x 9 € x 9 €
Vacuum Pump Weight: 30 lbs
Oil Heater Electrical: 230V/3~/33.7A or 460V/3~/18A
Oil Heater Dimensions (L x W x H in.): 37 €x 18 € x 54 €
Oil Heater Weight: 600 lbs
Variable Frequency Drive Mixer Electrical: 208 – 240V/1~ or 3~ input, 3~ output/1A
Total Amps 240V: 52
Total Amps 480V: 26
