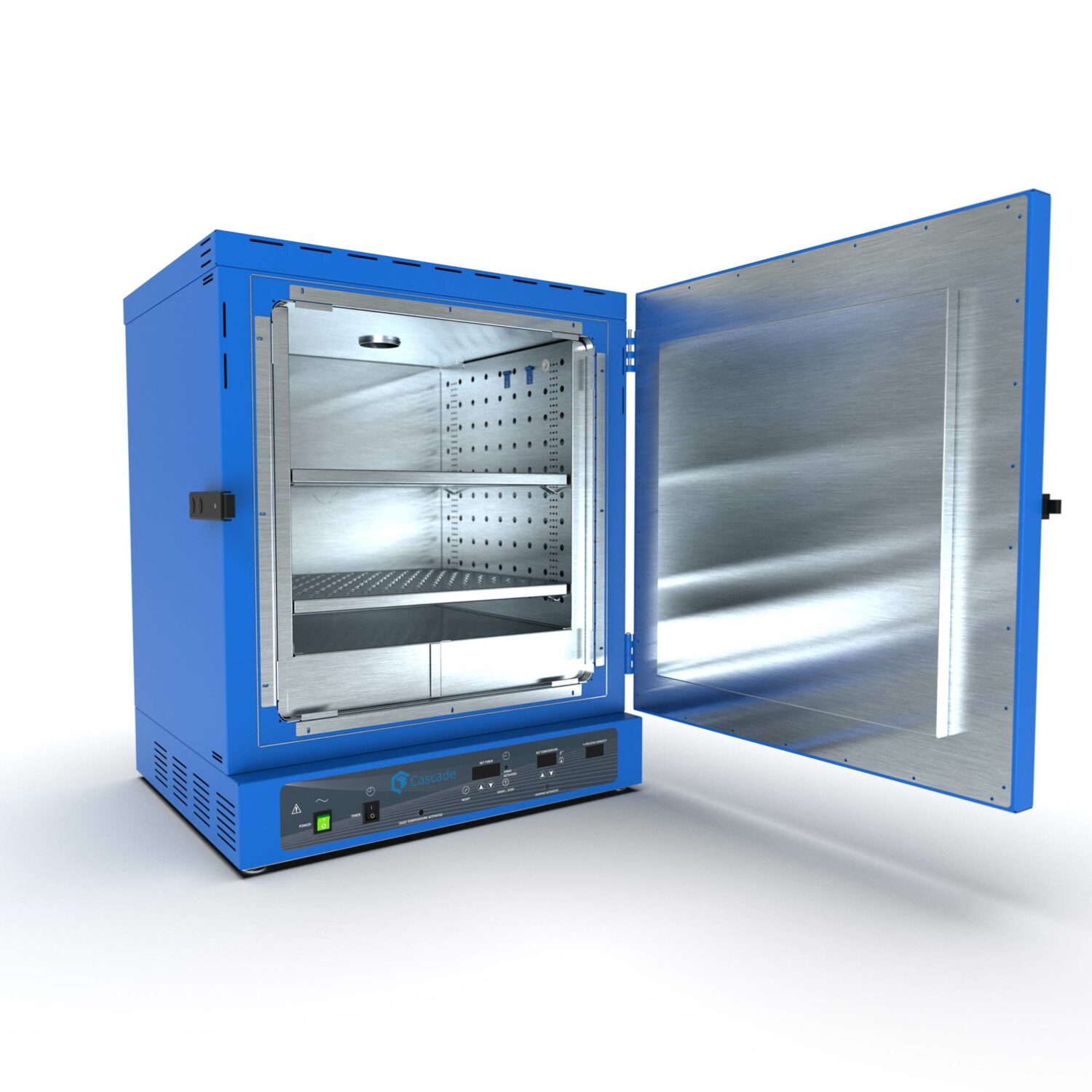

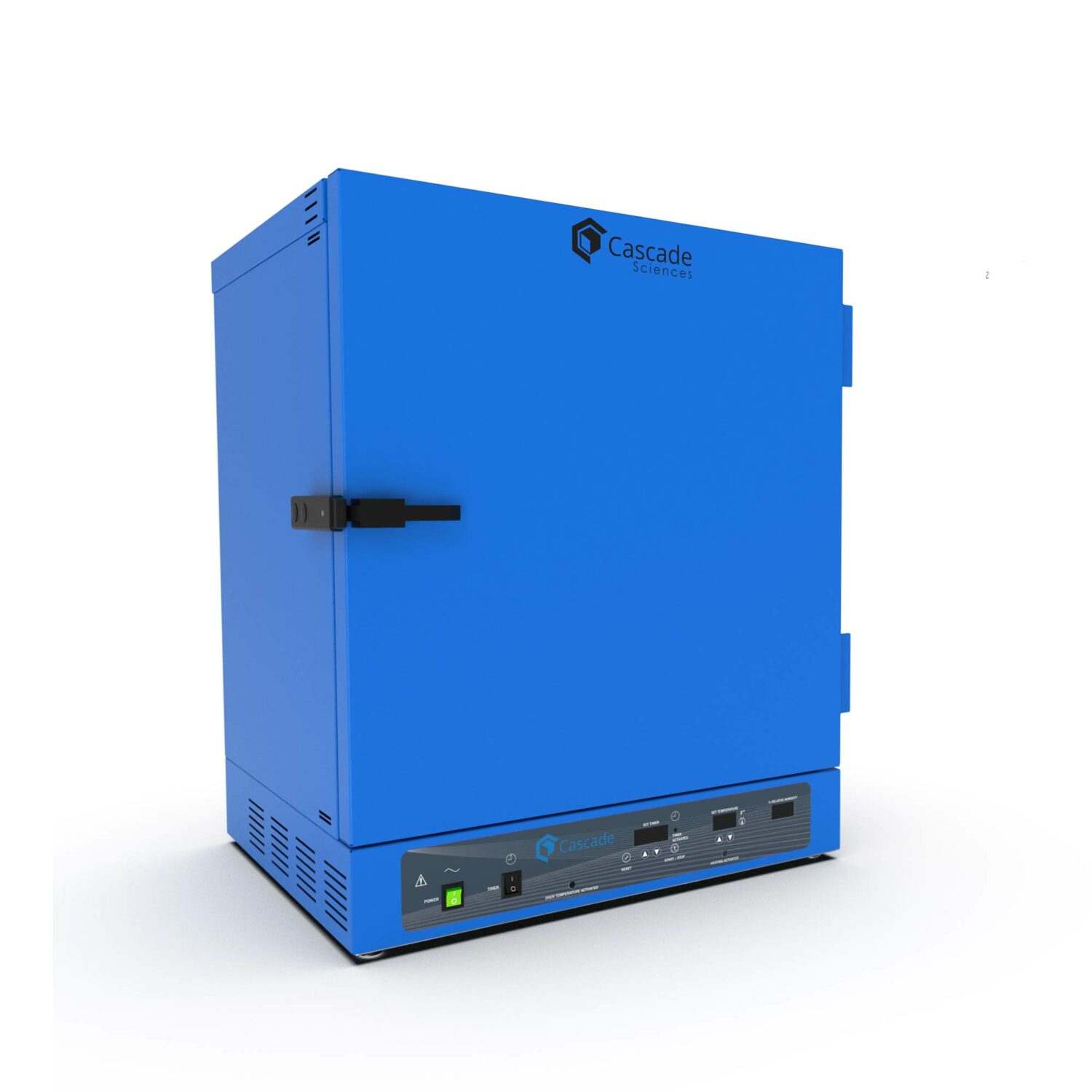

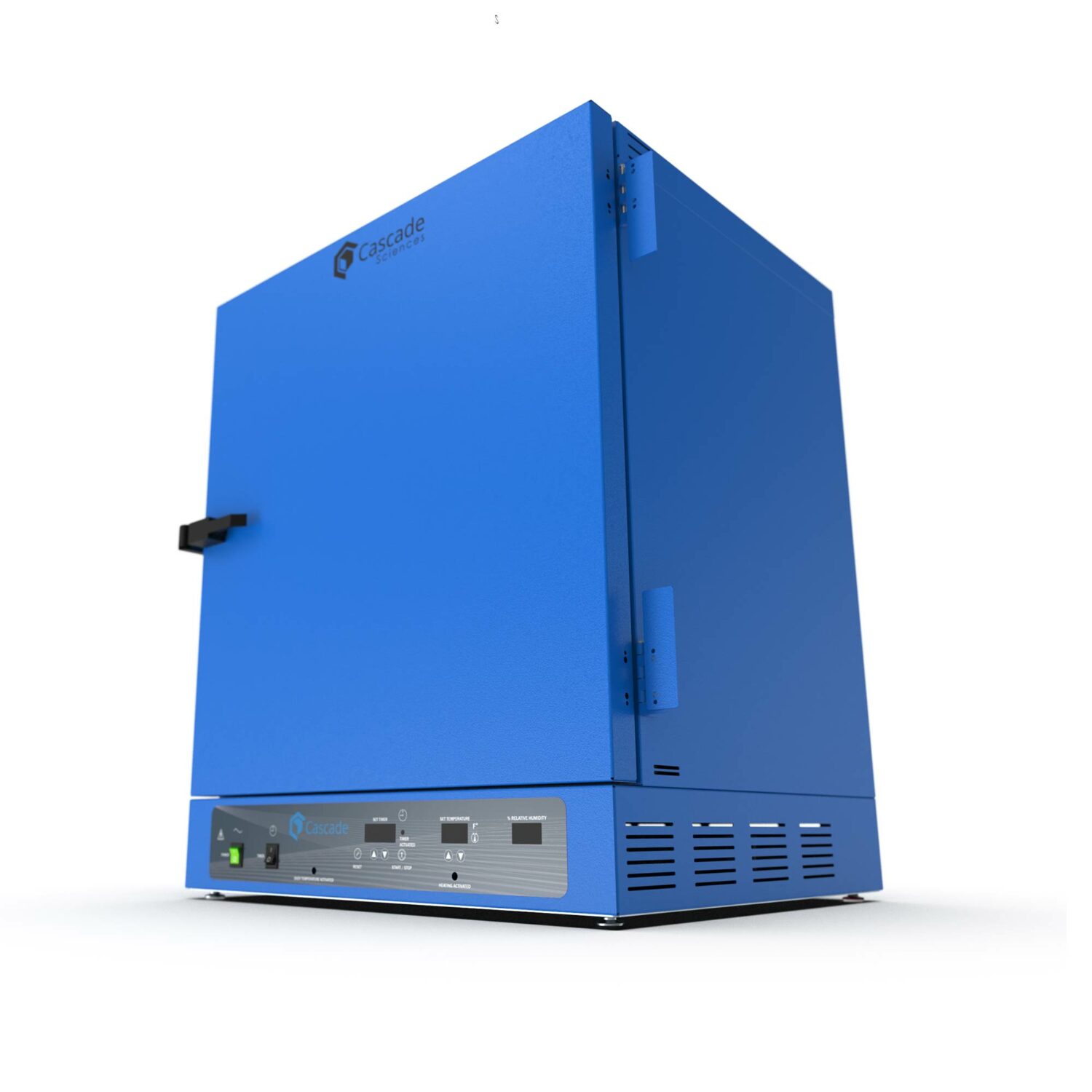

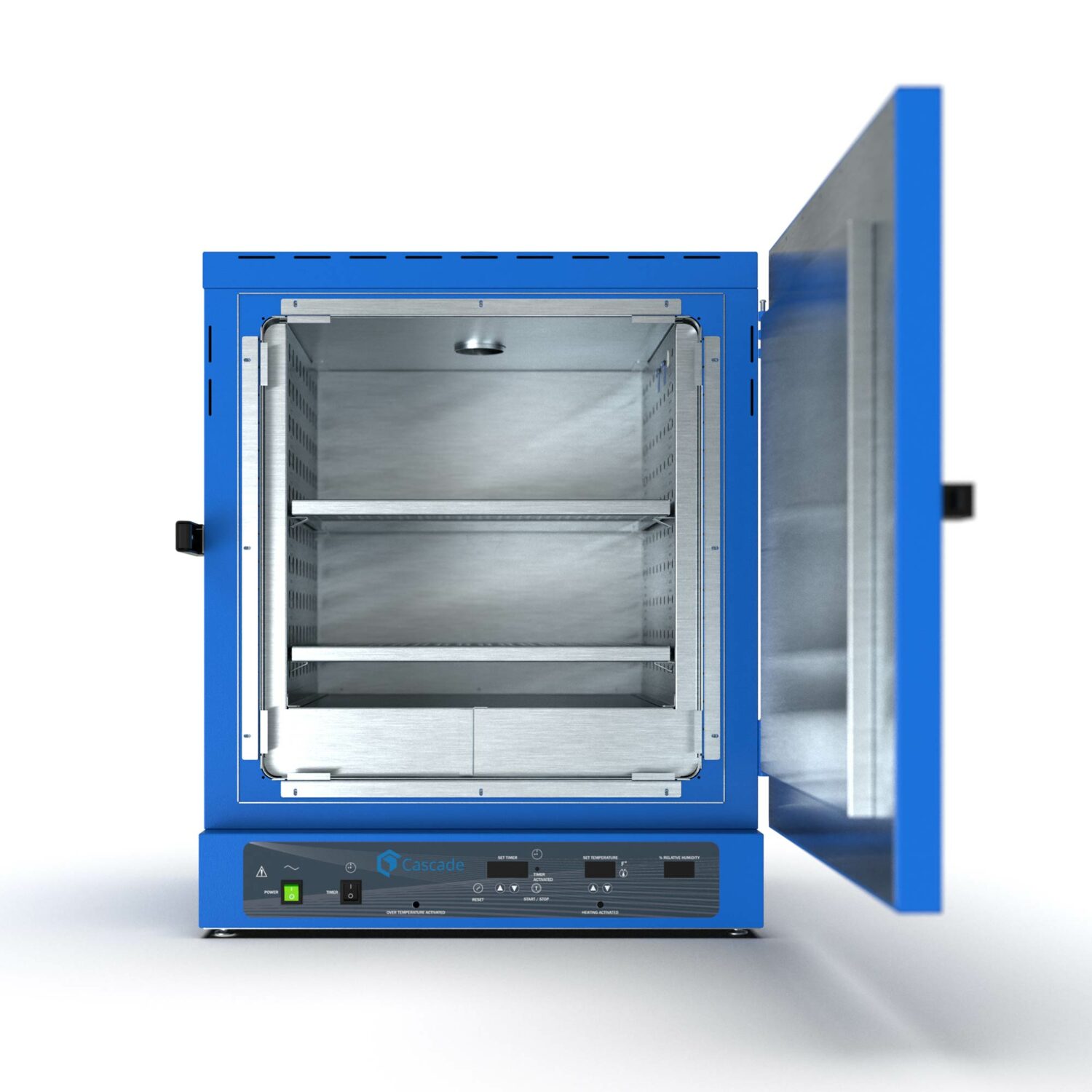

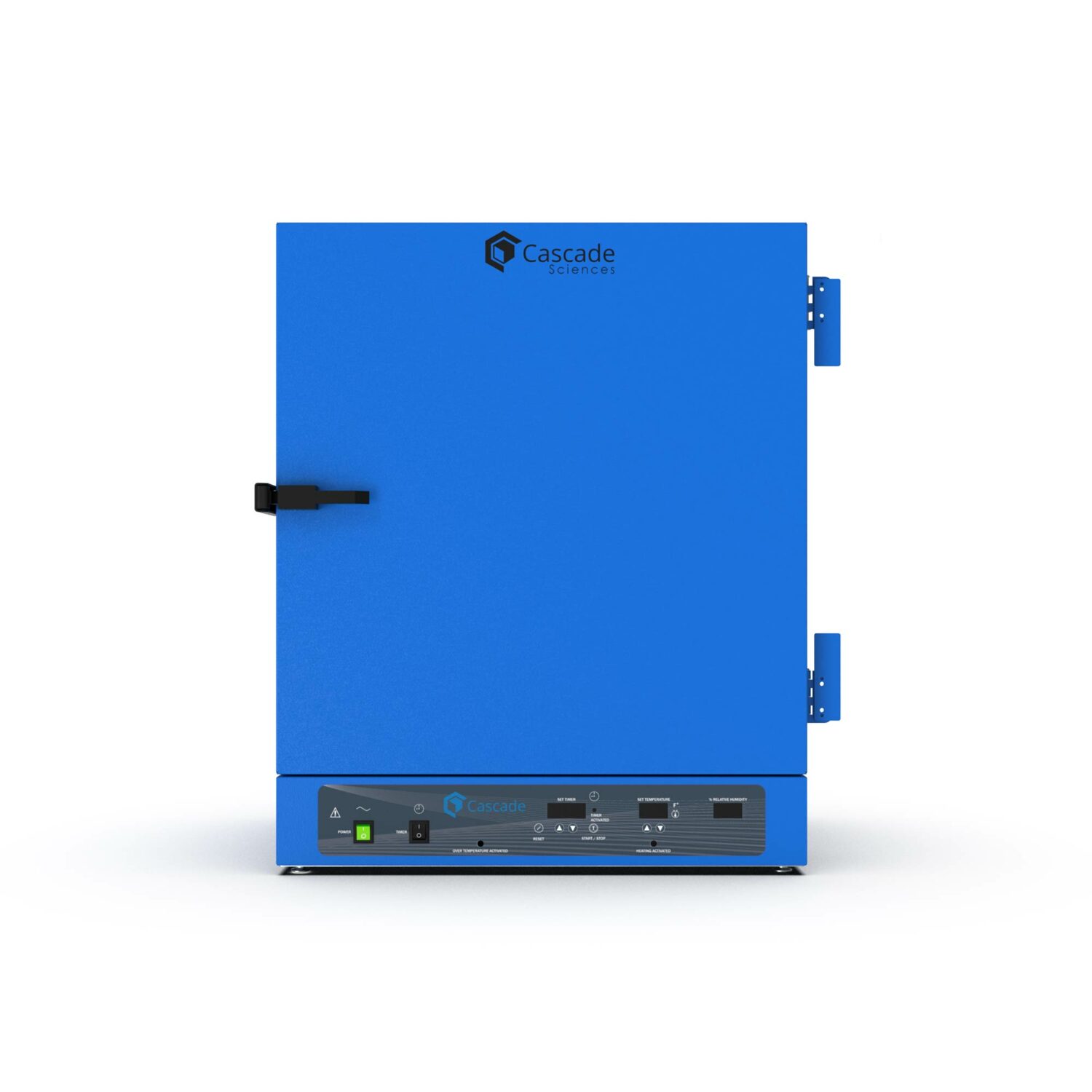

CDO-5 Dry & Decarb Oven

Cascade

SKU:CS-1901010002

5 cu ft. – 120V standard (220V option)

This powerful benchtop forced air laboratory oven uses heated air to remove unwanted compounds from products that are not temperature sensitive.

Our ovens feature horizontal airflow that enables more consistent distribution of air. They are designed to have uniform temperatures and airflow across the shelf space from right to left.

The CDO-5 includes a built-in humidity sensor and fine micron mesh bags for drying or decarboxylating powders or ground material.

Description

Model CDO-5

Basic forced-air lab ovens are mass-produced and sold by many large-scale laboratory equipment distributors. But there are key differences between Cascade and other less costly, often imported lab ovens:

Independent Overtemp Failsafe Protection

The Cascade Sciences CDO-5 is equipped with a heating cutoff system that will automatically stop power to the heaters when the overtemp setting is tripped. This protection system will provide peace of mind for overnight or unattended drying processing.

Ideal Uses:

R&D, laboratory-scale forced-air convection drying
Decarboxylation processes
Drying organic material. Drier material will yield better results than processing wet material. Removing as much moisture as possible pre-processing will save time in the post-process of vacuum purge and winterization.
Lab glassware dryer

Features

CDO-5 is purpose-built for bench-top, R&D drying and decarboxylation of material with additional features:

Built-in Humidity Sensor assists in monitoring dryness
Adjustable stainless steel shelves – 2 each
NRTL Certification
2 each FDA temp-rated fine micron mesh bags for ground material –
Mesh bags are required to prevent oven contamination and ground material loss.

Compliance

Model CDO-5

ISO 9001
NRTL TUV #U8 170464972 077
CAN/CSA-C22.2 No. 61010-1:2012
+ UPD No. 1:2015-07 + UPD No. 2:2016-04
CAN/CSA-C22.2 No. 61010-2-010:2015
UL 61010-1:2012/R:2016-04
UL 61010-2-010:2015
EN 61010-1:2010
EN 61010-2-010:2014

CDO 5 SafetyCerts Page

Warranty Information

1 Year

Technical Specifications

Model CDO-5

All shelves are removable and adjustable.

Capacity

Volume: 4.9 Cubic Ft. / 138 Cubic Liters

Interior (W x D x H):
21” x 19.44” x 20.75”
534mm x 494mm x 527mm

Exterior (W x D x H):
34.1” x 28.1” x 38.75”
866mm x 711mm x 984mm

Temperature

Temperature Range: +2°C (36°F) above room temp to 180°C (350°F)
Temp Stability: +/-0.4 °F
Temp Uniformity @ 40°C (100°F): +/- .5°C (1°F)
Temp Uniformity @ 115°C (240°F): +/- 1°C (1.5°F)
Temp Uniformity @ 150°C (305°F): +/- 2°C (3°F)
Heat up / Stabilization Time from 25°C (77°F) to 115°C (240°F): 40 min

Airflow Exchanges: 220 per hour @ 80°C (176°F)
Linear Shelf Space Airflow: 145 Feet Per Min (44 Liters Per Min)
Air Intake:Adjustable side vents.
Air Exhaust: Adjustable. Top 2.75: Dia
Exhaust Airflow @ 80°C (176°F): 18.5 Feet Per Min (523.9 Liters Per Min)

Shelving

Comes with 2 each. Height Adjustable.
Surface Area (W x D): 20.75″ x 19″

Weight Capacity: 50lbs

Mesh Bags

Comes with 2 Temp Rated Mesh Bags

Polypropylene (PP)
Melt Temperature: 161°C (363°F)
Softening Point: 152°C (305°F)
Heat Deflection Temperature: 90°C (194°F)
Glass Transition Temperature: 0°C (32°F)

* Mesh bags are REQUIRED to prevent oven contamination and ground material loss.
* Polypropylene products produced for some filtration applications are made from resin that complies with FDA regulations for food contact. The regulation compliance is product number dependent / specific.
* Impact at cold temperatures is likely to cause strand cracking or breakage

Documents

Brochure

User manual

More information

CDO-5 Oven Accessories include:

Mesh Bags for decarb of biomass

Extra Shelves
