Home Catalog Jacketed Glass Reactor (with Accessories)

Jacketed Glass Reactor (with Accessories)

Contact Us for Pricing

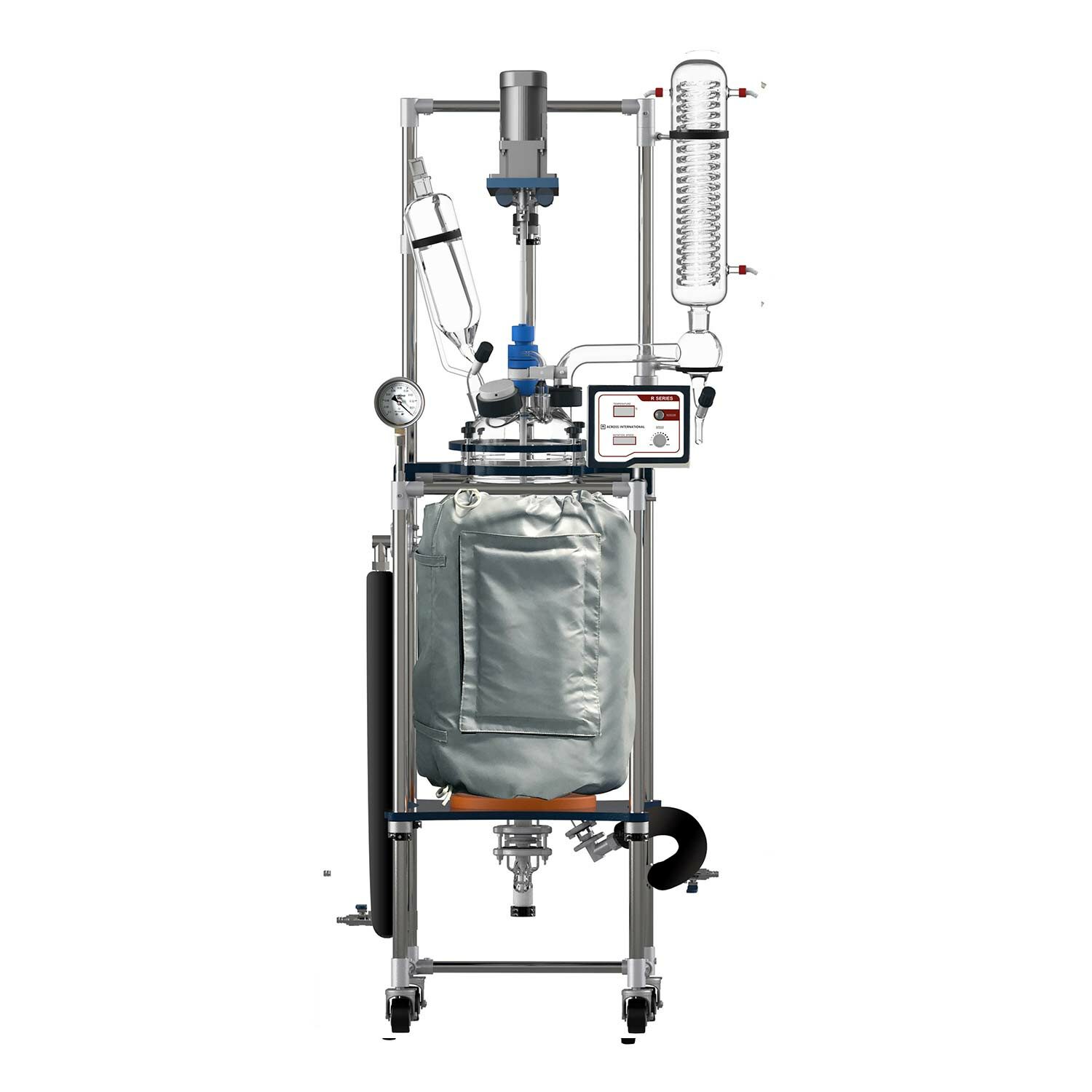

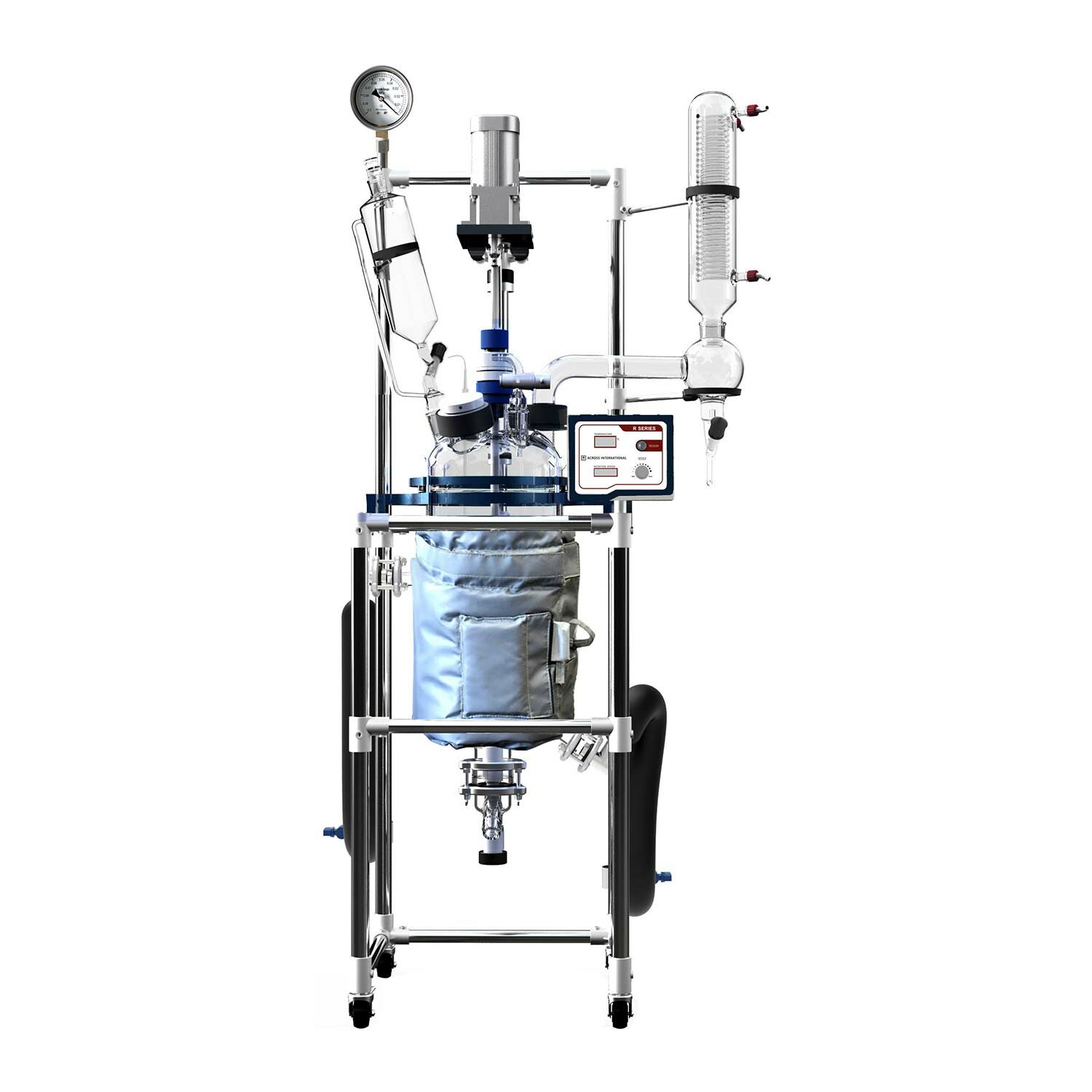

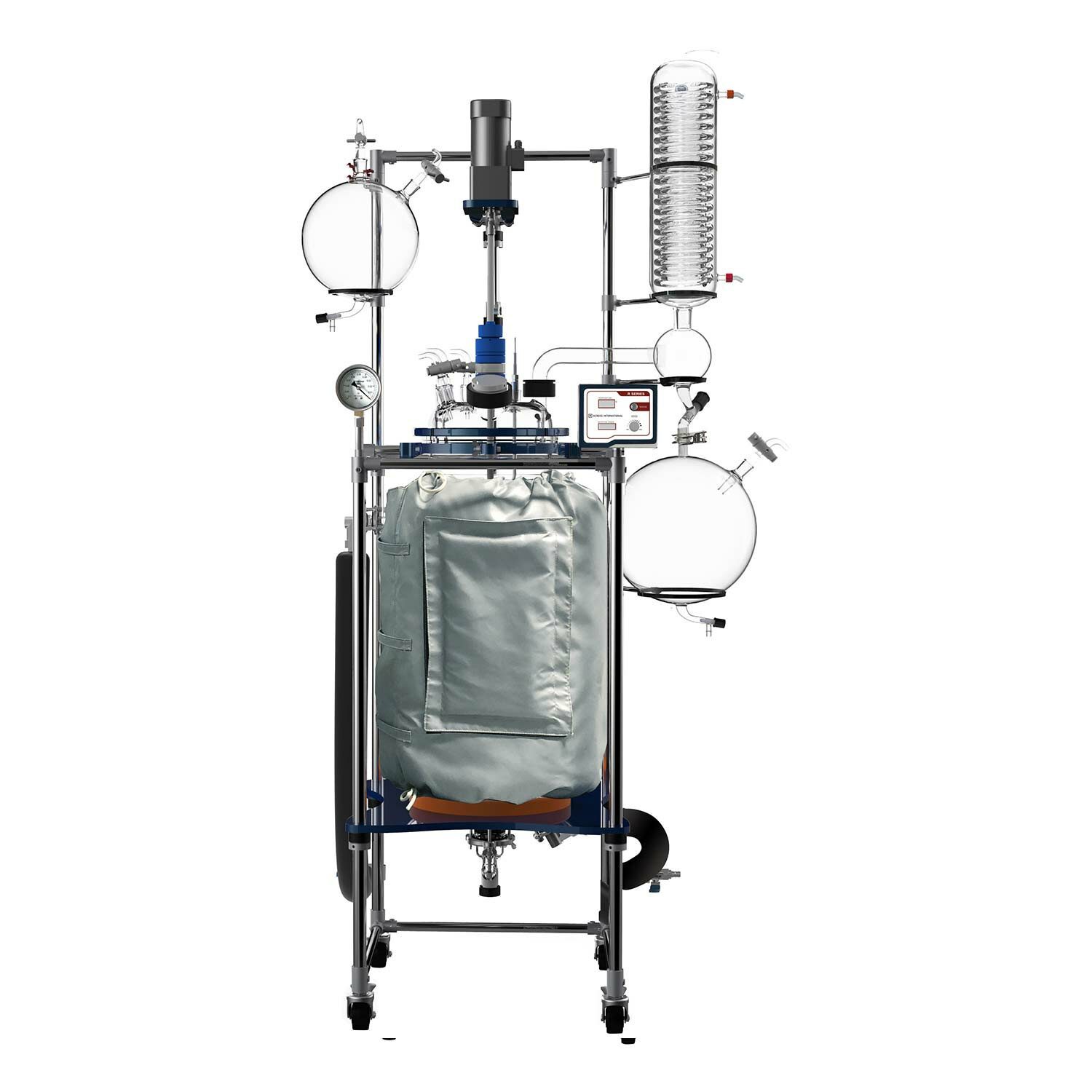

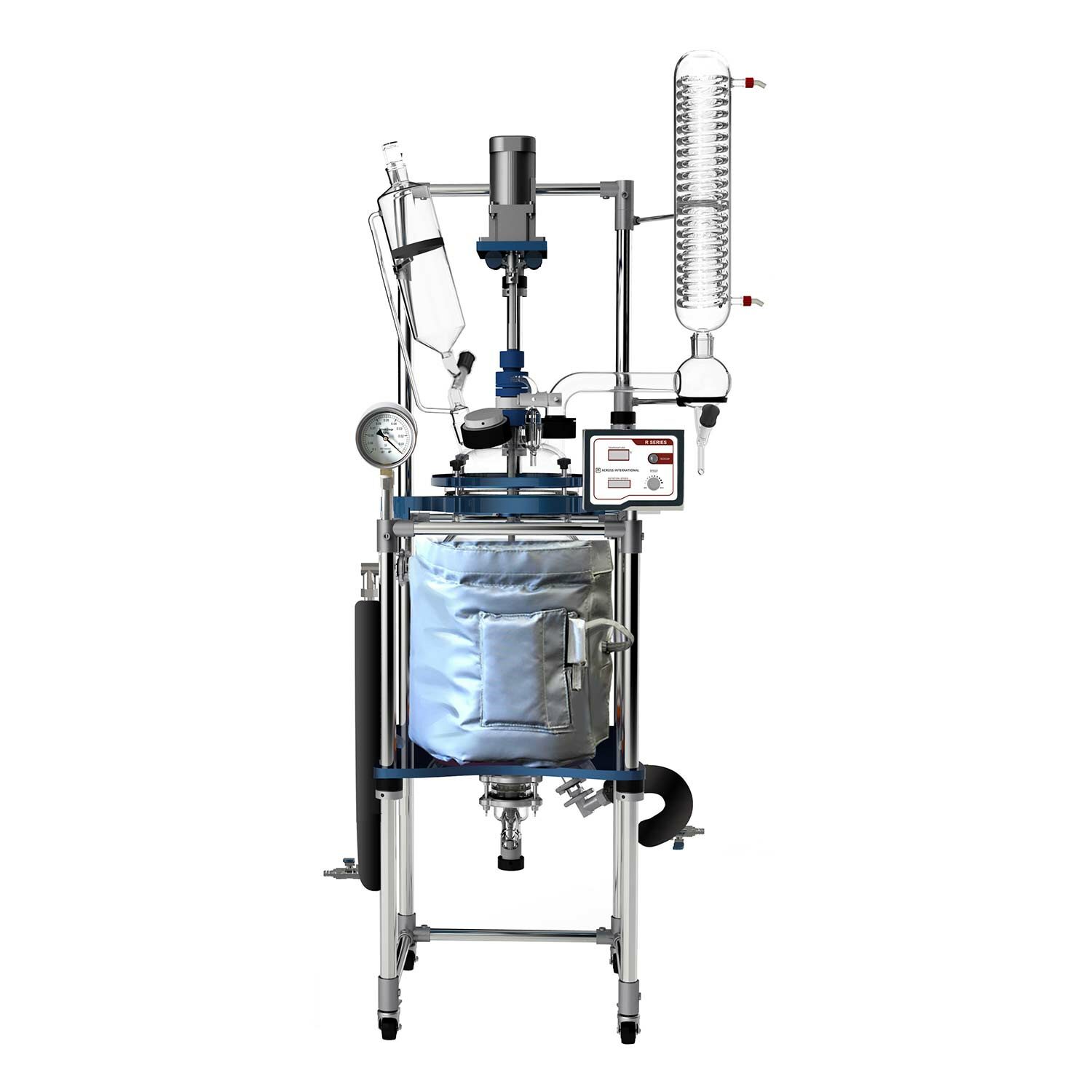

Jacketed Glass Reactors from Ai are designed for synthetic reactions with different types of materials in a controlled temperature and vacuum environment.

Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Jacketed Glass Reactor Features:

  • UL, CSA, and CE certified
  • Includes thermo insulation jacket
  • Solvent-resistant PTFE seals
  • All glassware is borosilicate
  • Adjustable stirring rates
  • Patented PTFE stirring rod bearing
  • Temperature range of -110° to 400°F
  • Large condenser cooling surface for exceptional condensation performance
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator
  • Easy operation with digital speed and temperature displays
  • Heavy duty stainless supporting framework with lockable casters
  • One year warranty

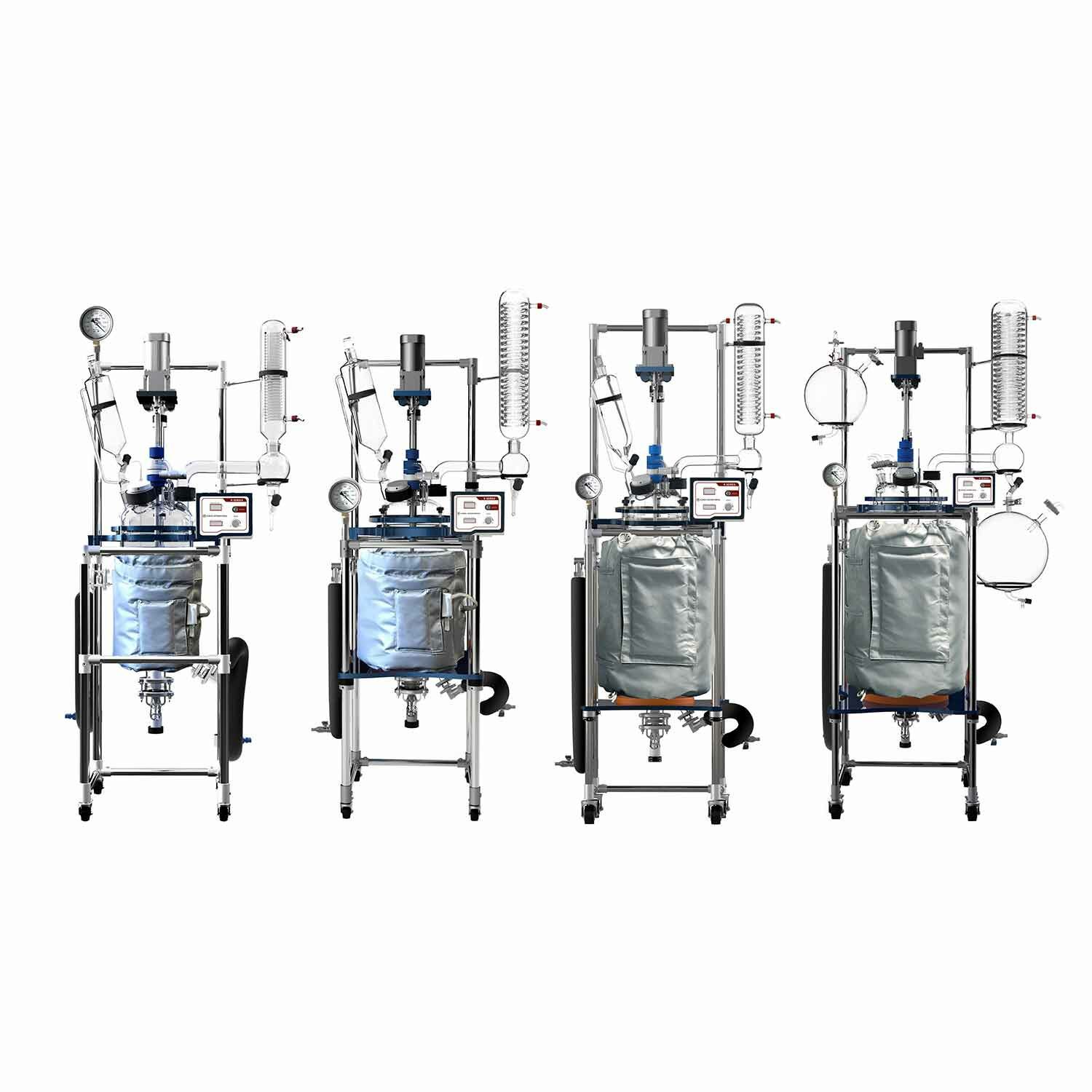

Model: R10  R20 R50 R100
Reaction Vessel Capacity: 10 Liters 20 Liters 50 Liters 100 Liters
Electrical Requirements: 110V 60Hz 1€PH,  90W 110V 60Hz 1€PH,  90W 110V 60Hz 1€PH,  140W 110V 60Hz 1€PH,  250W
Cooling/Heating Jacket Capacity: 3 Liters 6 Liters 16 Liters 30 Liters
Drain Port Ground Clearance: 15€ 13€ 12.5€ 13.5€
Unit Height (Fully Assembled): 78€ 80€ 88€ 98€
Controller: Digital controller with variable frequency drive. Rotation speed: 50 to 500 rpm
Glass Vessel Temperature Range: -110F to 400F / -78C to 204C
Glass Material: High borosilicate glass 3.3
Agitator Anchor design, type€304 stainless steel reinforced with PTFE coating

Jacketed Glass Reactor (with Accessories)

Contact Us for Pricing

SKU:AI-R100-MXP

Jacketed Glass Reactors from Ai are designed for synthetic reactions with different types of materials in a controlled temperature and vacuum environment.
