Scroll Pump Tip Replacement Kit Agilent IDP7

Name: Scroll Pump Tip Replacement Kit Agilent IDP7
Brand: Agrify
SKU: AG-1801010112
Price: 355.00 USD
Availability: InStock

$355.00

SKU:AG-1801010112

Dry Scroll Pumps require “Tip Seal” changes typically once per year.

The TIP SEAL is a flexible band that sits on top of the pumps internal scrolls.

Over time they can wear out causing the pump to lose optimal vacuum.

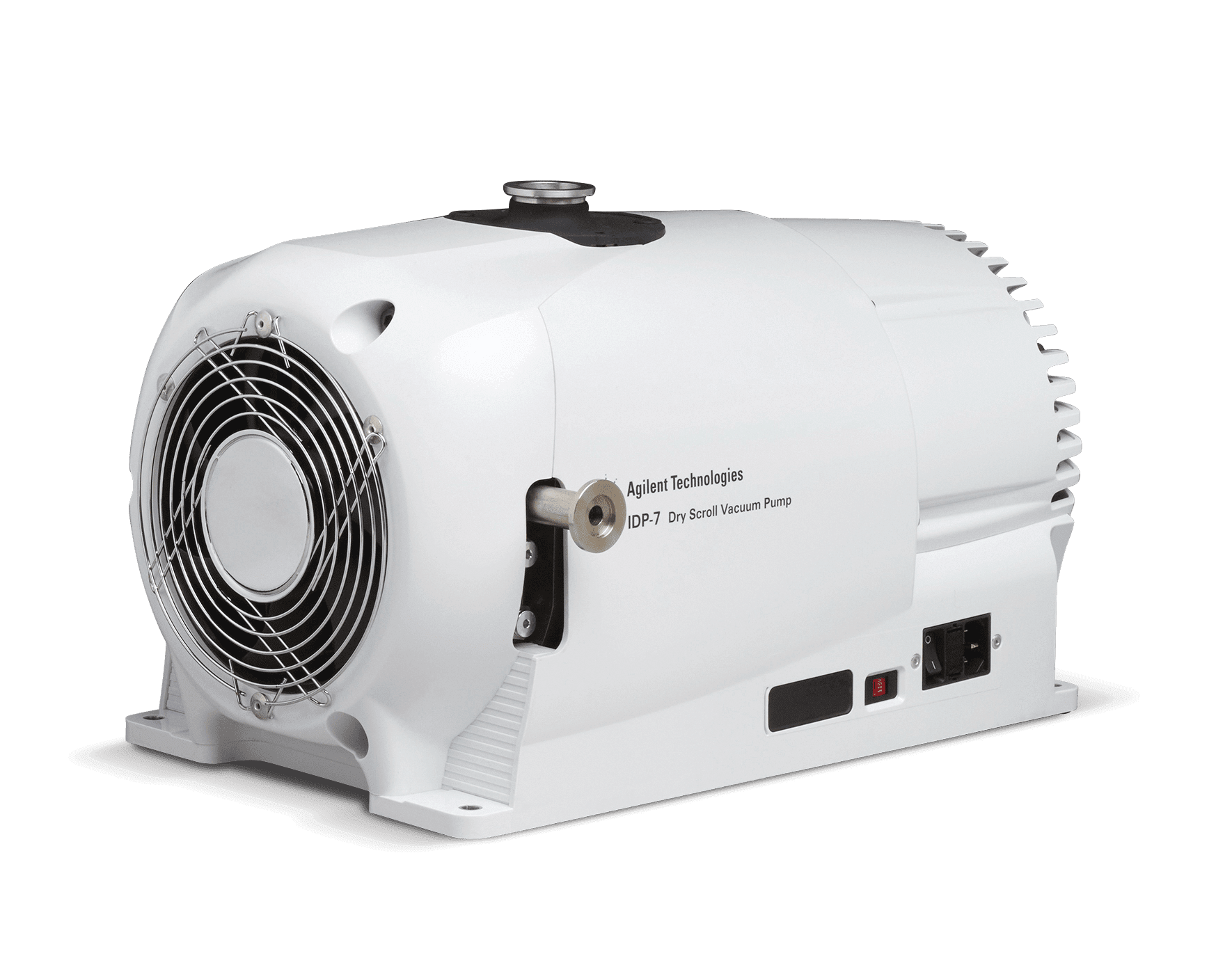

This tip seal kit is designed specifically for the Agilent IDP7 scroll pump.

Be sure to have a spare tip seal kit on hand to minimize downtime/keep production flowing.

In stock

Agilent Part Number:
X3807-64200

Pump Type:
Oil-Free, Scroll

Pumping Speed:
5.4 CFM / 9.1 m3/hr

Ultimate Pressure:
2 x 10^-2 Torr / 20 mTorr

Power:
100V-120V 1ph 6AMP typical (200V-240V 1ph 3AMP typical available)

Intake Connection:
KF-25 1/2″ hose barb exhaust

Dimensions:
14.72”L x 10.24”W x 10”H (374mm x 260mm x 254mm)

Weight:
54 lbs (25.5 kg)

Shipping Weight:
62 lbs (28 kg)
