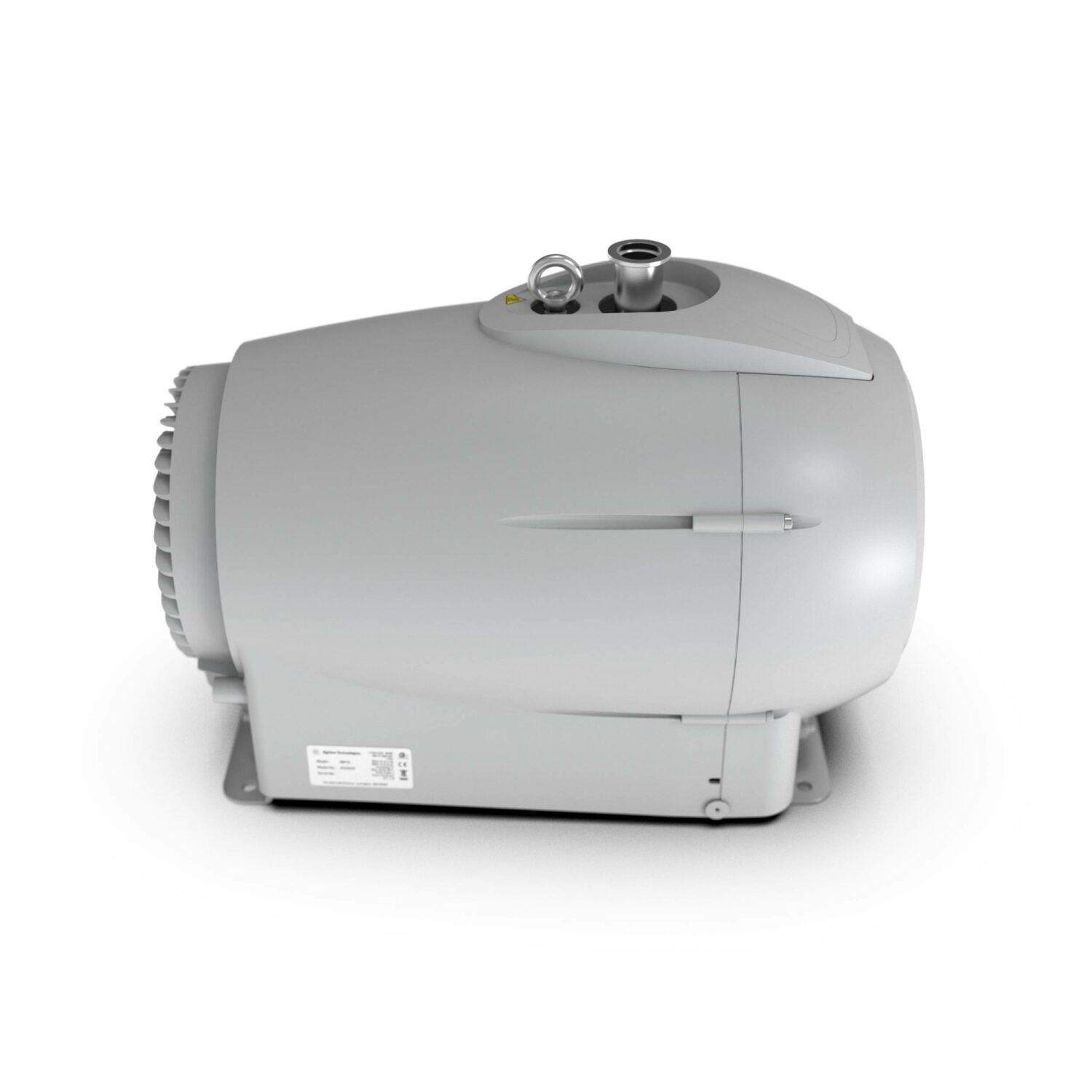

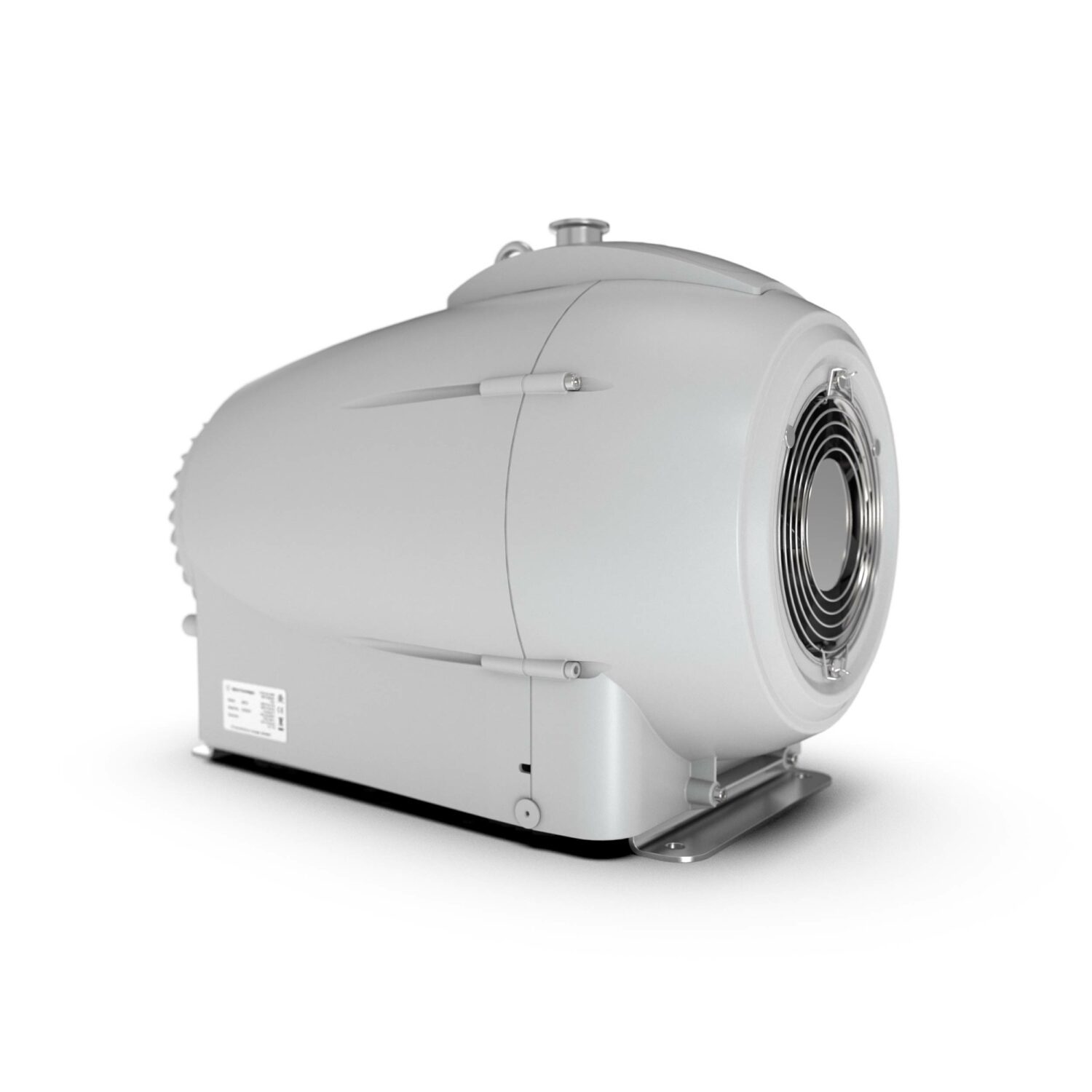

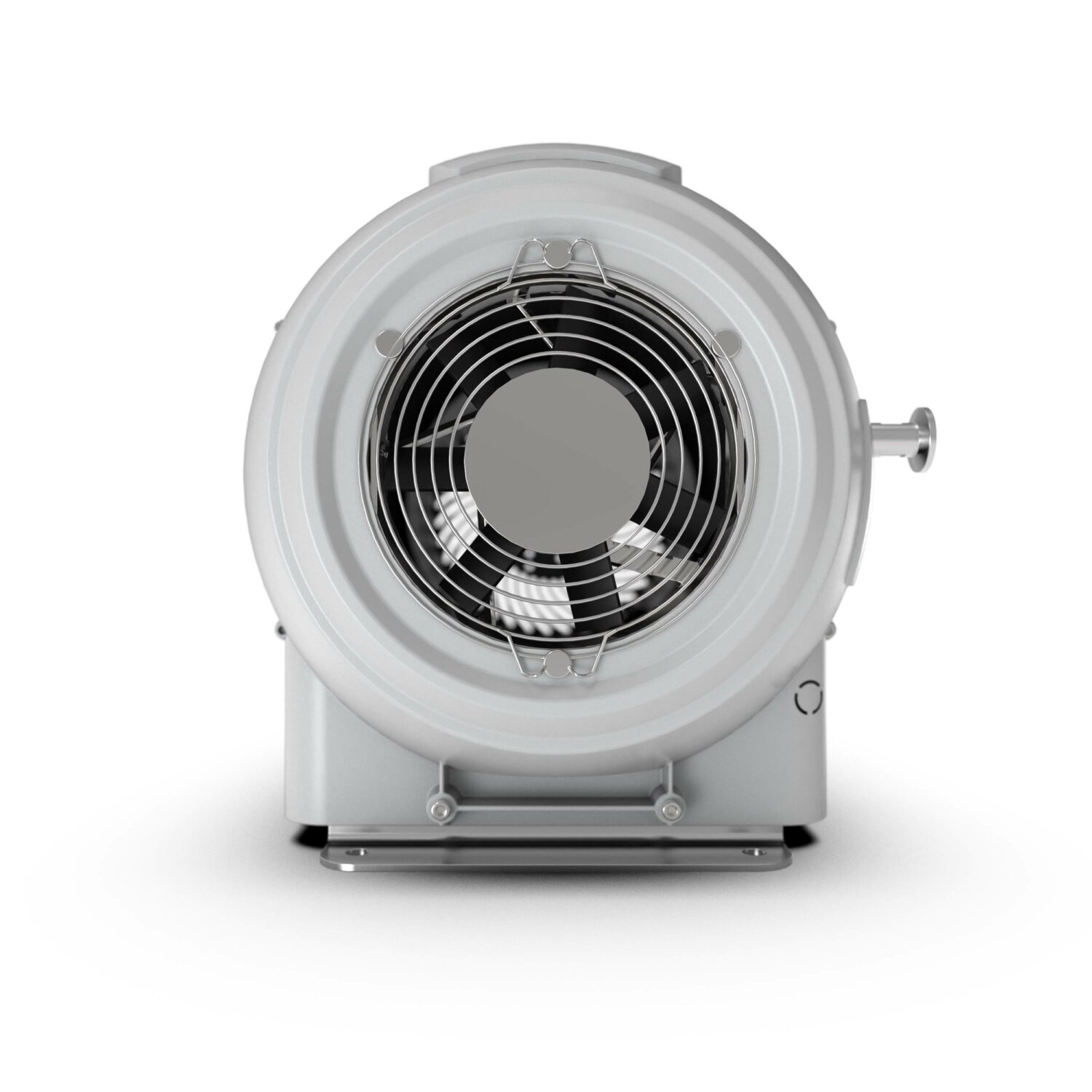

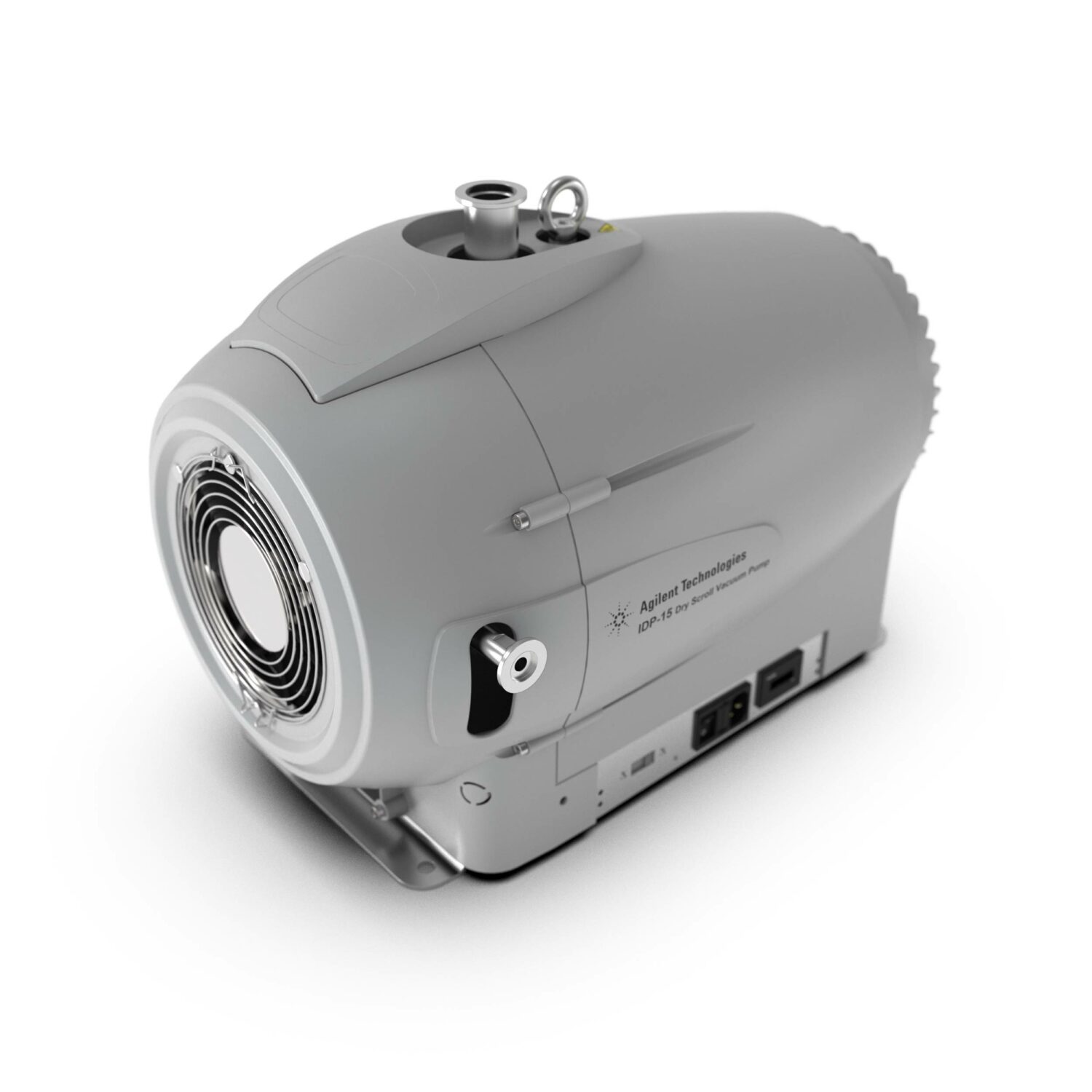

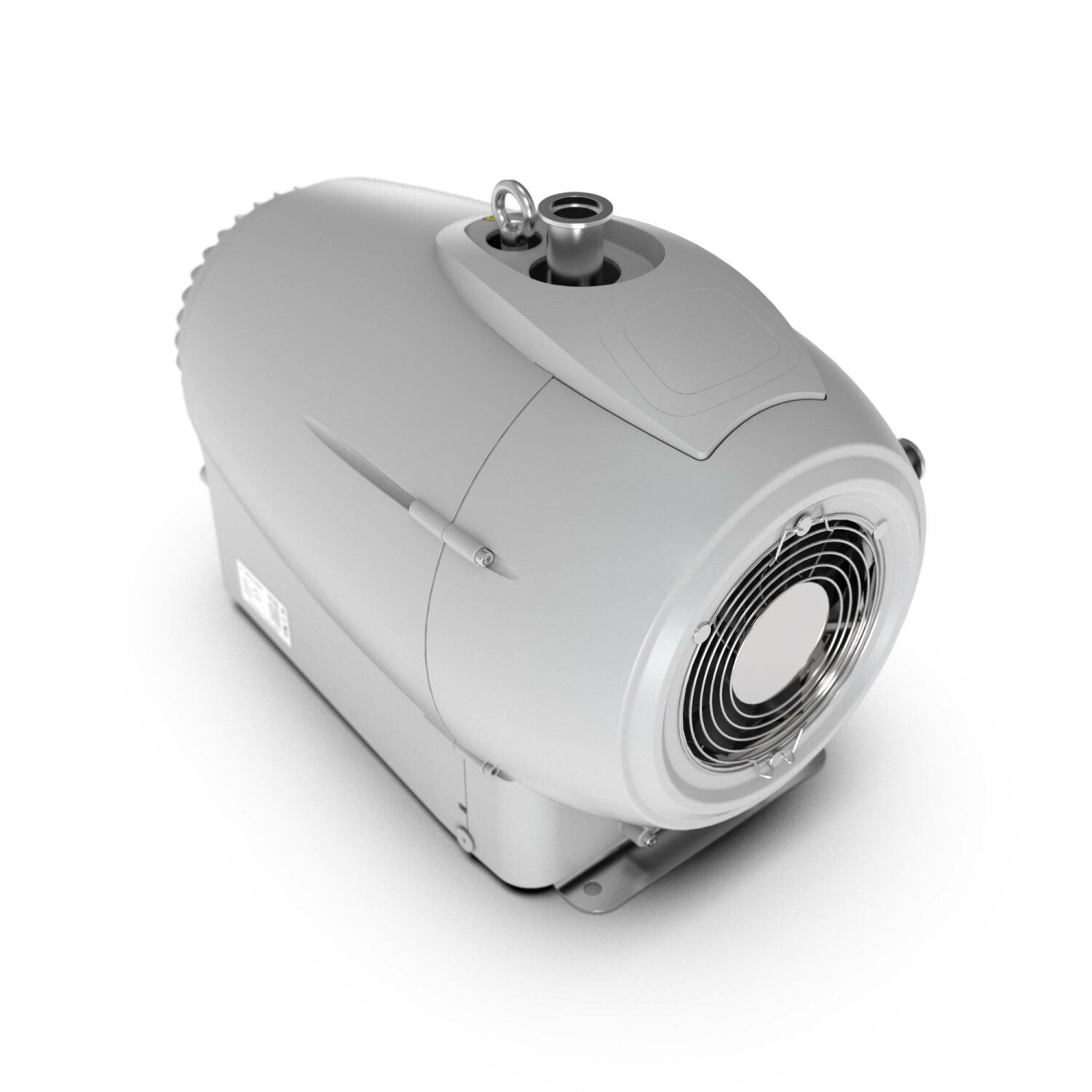

Agilent IDP15 9 CFM

Agilent IDP15 9 CFM


Agilent IDP15 Maintenance – Tip Seal Replacement

  • Easy, do-it yourself maintenance. Replace tip seals every 6-18 months (depending on usage). When the time comes, order our IDP15 Tip Seal Replacement Kit or ask us about our maintenance service.

Agilent IDP15 9 CFM


Why We Like The  Agilent IDP15 Vacuum Pump

Agilent’s 9 CFM dry scroll pump is oil-free – making it a clean, quiet, high performance vacuum pump. The IDP15 uses a single-sided scroll design that allows for a straightforward maintenance procedure with simple tools.

Oil-Free Is The Proper Pump Choice for Clean Rooms, Bio-Pharma, Neutraceutical Processes

With an oil-free scroll pump, there is no chance of having a product batch contaminated by “backstreaming” of the dirty hydrocarbon oils associated with oil-filled rotary vane vacuum pumps.  Because it’s oil-free, the Agilent IDP15 does not smoke out of the exhaust or require filters and traps on the vacuum pump inlet and outlet.

Hermetically Sealed = Clean & Safe

Agilent’s IDP15 pump is hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. The hermetic design of this pump allow for longer life by protecting the interior workings of the pump from aggressive solvents, corrosives, etc.

Pull Deeper Vacuum / Gas Ballast Positions 1 and 2

The IDP15 has two gas ballast ports that assist the pump in handling condensable gases such as water vapor, or other gaseous products that become liquids or solvents when reaching atmospheric pressure. Allows the operator to pull vacuum to 1 torr or a deeper 250 mtorr while handling heavy gas loads.

Agilent IDP15 Scroll Pump Features


  • Cascade includes the power cord & exhaust hose at no extra charge
  • Digital hour meter for tracking service intervals
  • Hermetically sealed for longer life
  • Gas ballast allows for vacuum flexibility and higher vapor tolerance
  • Automatic thermal protection prevents overheating
  • 1 Year Warranty
  • Conforms with EN 61236-1:2006 as a Class A device, EN/IEC 61010 3rd Edition, CSA certified for US and Canada
  • Rebuild service available from Cascade. Just Ask!

AGILENT IDP15


Agilent Part Number:
 X3815-64000

Pump Type:
Oil-Free, Scroll

Pumping Speed:
9 CFM

Ultimate Pressure:
10 x 10-3 Torr

Power:
120V / 1ph (220V available)

Intake Connection:
KF-25

Dimensions:
19.08” L x 9.22” W x 14.3” H (485mm x 234mm x 363mm)

Weight:
75 lbs (34 kg)

Agilent IDP15 9 CFM

Agilent IDP15 9 CFM


Agilent IDP15 Maintenance – Tip Seal Replacement

  • Easy, do-it yourself maintenance. Replace tip seals every 6-18 months (depending on usage). When the time comes, order our IDP15 Tip Seal Replacement Kit or ask us about our maintenance service.
